Product Details:
|
| Working Principle: | Electrochemical Two Electrodes | Detection Range: | 0 To 25% O2 |
|---|---|---|---|
| Maximum Load: | 30% O2 | Output Signal: | 100±20 μA In Air |
| Highlight: | 4O2 GP Oxygen Gas Sensor,110kPa Oxygen Gas Sensor,4O2 GP Electrochemical Oxygen Sensor |
||

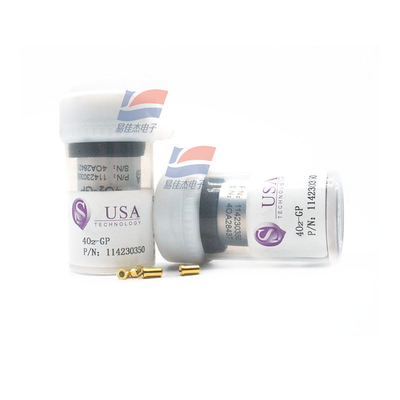

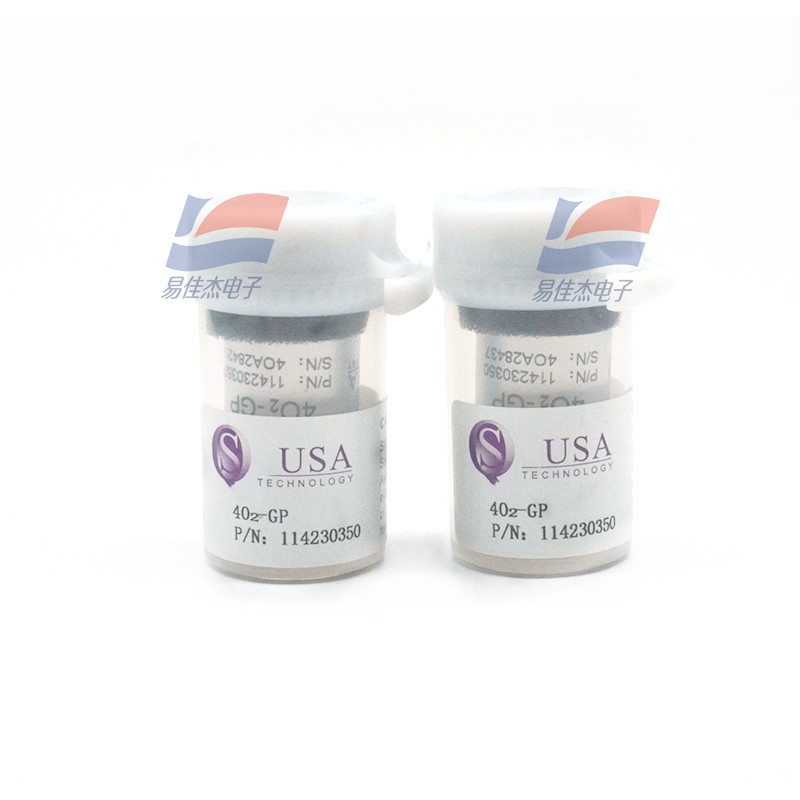

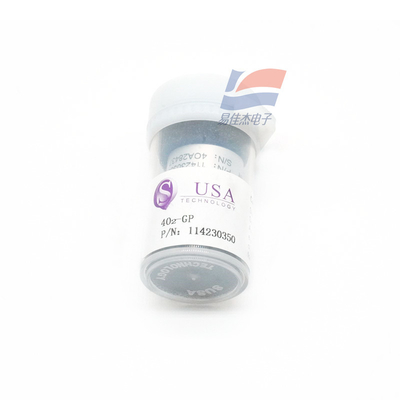

4O2-GP 114-230-350 Oxygen Gas Sensor Electrochemical Two Electrodes
Electrochemical Two Electrodes Oxygen Gas Sensors 4O2-GP
Toxic gases at TLV levels have no cross-sensitivity effect on oxygen sensors. At very high levels (i.e. percentage levels), high
Highly oxidizing gases (e.g. ozone, chlorine) will interfere to the extent of their oxygen equivalence, but most other common gases will not.
Specification
Resolution:0.01% O2
Weight:16 g
Orientation requirements:None
Working environment
Intended use Suitable for most life safety detectors
Operating temperature range:-20 to 50°C
Operating pressure range:90 to 110 kPa
Operating humidity range:15% to 90% RH (non-condensing)
Datasheet:
| Recommended storage environment | 0 to 20°C in airtight container |
| Service life | 2 years in air |
| Shelf life | 6 months in original packaging |
| Warranty | 12 months after delivery |
