Product Details:
|
| Measuring Range: | 0-100% | Output Signal In Air: | 13-16mv |
|---|---|---|---|
| Circuit Interface: | 3pin (molex) | Accuracy And Repeatability: | <1% Volume Oxygen, Calibrated In 100% Oxygen |
| Highlight: | 16mv Medical Oxygen Sensor,13mv Medical Oxygen Sensor,OOM102 Oxygen Sensor |
||

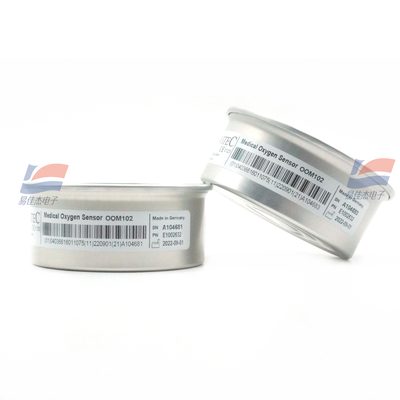

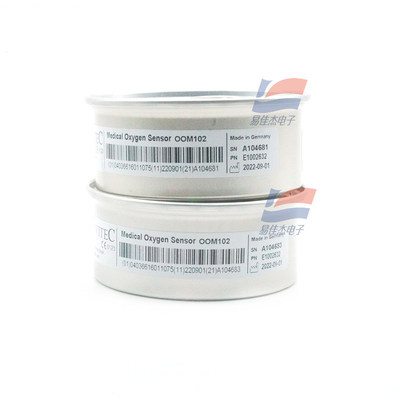

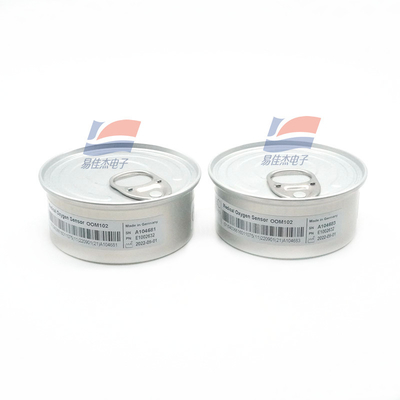

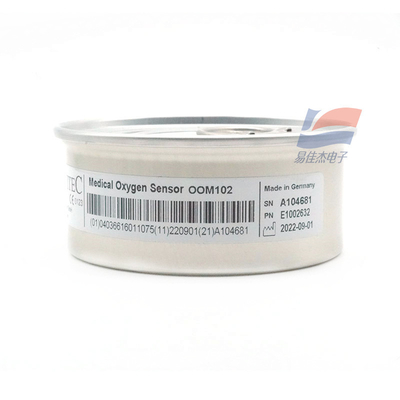

OOM102 Oxygen Gas Sensor High Reliablity 13mv 16mv Medical With 3pin Circuit Interface
Oxygen Battery Gas Sensor OOM102 Medical Use
Specifications:
*Response time: <12 seconds relative to 90% relative
*Zero drift: <200μV for 5 minutes in 100% ammonia
*Effect of temperature: -0.03% relative temperature, 25°C
*Effect of Pressure: Proportional to partial pressure of oxygen
*Effect of mechanical shock: <1% relative error, after falling from a height of 1 meter
*Working temperature: 0℃~50℃
*Temperature Compensation: Built-in thermistor compensation
*Temperature influence: 25℃~40℃, 3% relative error
Datasheet:
| Compensation (steady state) | 8% relative error between 0°C and 50°C |
| Weight | About 28G |
| Working Humidity | 0-99% RH (Condensable air for hours) |
| Storage temperature | -20℃~50℃ |
| Storage temperature | 5℃~15℃ |
| Load | ≥10Ω |
| Warm-up time | <30 minutes after sensor replacement |
| Rated sensor life | ≥1000000% volume oxygen hours |
