Product Details:
|
| Range: | 0 To 30% O2 | Maximum Load: | 90% O2 |
|---|---|---|---|
| Baseline: | -50 ~ 0 μA (Nitrogen) | Resolution: | 0.1% O2 |
| Highlight: | CLE 0231 40S Oxygen Gas Sensor,4SPE O2 Oxygen Gas Sensor,CLE 0231 40S Gas O2 Sensor |
||

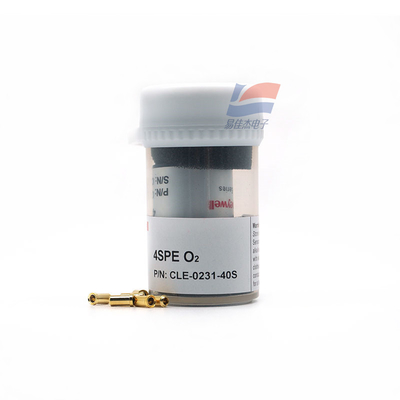

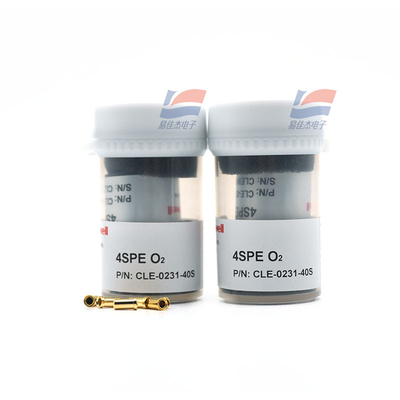

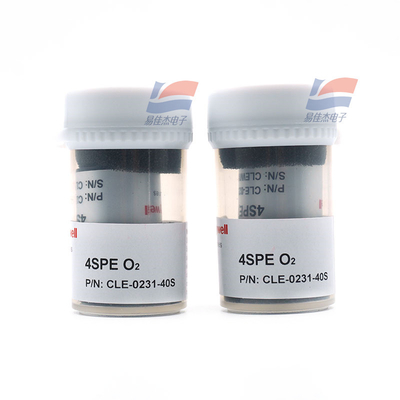

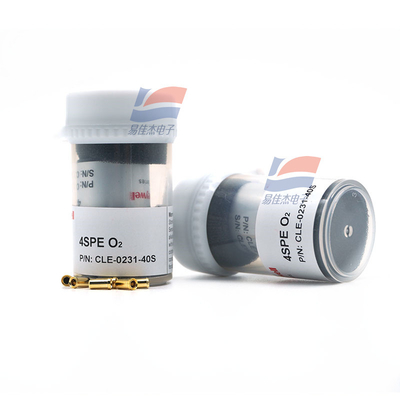

4SPE O2 CLE-0231-40S Oxygen Gas Sensor Under Ambient Conditions Non Liquid Electrolyte
1.
All the performance specifications above are under ambient conditions, temperature 20°C, relative humidity 50%RH,
Measured at one atmosphere (100kPa or ambient pressure).
2.
It is recommended to use daily standard gas for calibration. We do not guarantee the accuracy of the calibration and measurement if the gas is used for calibration.
3.
Cross-sensitivity will vary by +/-30% and may vary with sensor production and sensor age.
4.
The above-mentioned cross-sensitivity includes but not limited to the above-mentioned gases, and the sensor may self-response to other gases.
Datasheet:
| Resolution | 0.1% O2 |
| Response time (T90) | less than or equal to 30 seconds |
| Operating temperature |
-20oC to 50oC
|
| Operating humidity | 15 to 90%RH (non-condensing) |
| Working pressure | 90 to 110kPa |
| Bias | -600 mV |
| Storage time | 6 months (in special box) |
| Storage temperature | 0 oC to 20 oC |
| Service life | 2 years in air |
