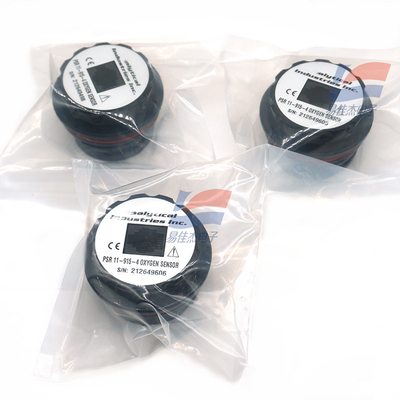

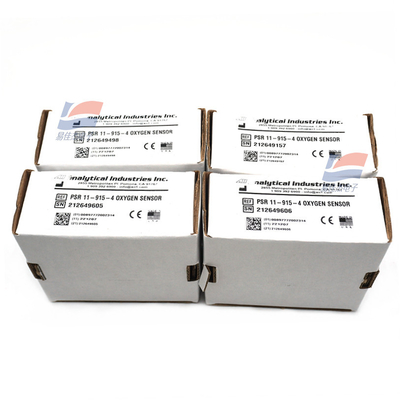

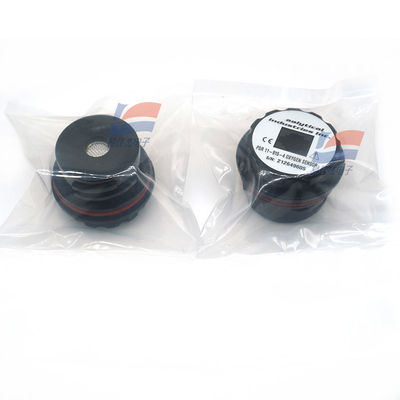

PSR 11-915-4 Gas Oxygen Sensors 3 Pin Thermistor Compensation High Stability

Large Image : PSR 11-915-4 Gas Oxygen Sensors 3 Pin Thermistor Compensation High Stability

Product Details:

Place of Origin:	USA
Brand Name:	Analytical
Model Number:	PSR 11-915-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Months

Contact Now

PSR 11-915-4 Gas Oxygen Sensors 3 Pin Thermistor Compensation High Stability

Description

Measuring Range:

0-100%

Output Signal In Air:

13-16mv

Circuit Interface:

3pin (molex)

Repeatability:

<1% Volume Oxygen, After Calibration In 100% Oxygen

Highlight:

PSR 11-915-4 Gas Oxygen Sensors

3 Pin Gas Oxygen Sensors

PSR 11-915-4 Oxygen Detector Sensor

PSR 11-915-4 Gas Oxygen Sensors 3 Pin Thermistor Compensation High Stability

Application:
Medical, Aviation, Diving

Main features:

Compatible with various imported brands of respiratory equipment

Datasheet:

Signal Output	8-13 mV
Response Time 90%	9 Seconds
Accuracy Full Scale	+ 1%
Accuracy FS Over Operating Temperature	+ 5%
Drift (% Signal Month)	< 1%
Humidity non-condensing	0-99% RH
Temperature Coefficient	Compensated
Operating Temperature	0-45°C
Operating Pressure Constant	5-30 PSIG
Flow Rate	1-10 LPM
Expected Life	60 Months
Storage	0 to 40°C

PSR 11-915-4 Gas Oxygen Sensors 3 Pin Thermistor Compensation High Stability 0
