Product Details:
|
| O2 Measurement Range: | 0% To 100% | Onboard: | Temperature Compensation |
|---|---|---|---|
| O2 Zero Current (offset) Lt: | 0.1% | T90 Response Time Lt: | 5 Seconds |
| Highlight: | SGX VOX Oxygen Gas Sensor,5s Oxygen Gas Sensor,SGX VOX Oxygen O2 Sensor |
||

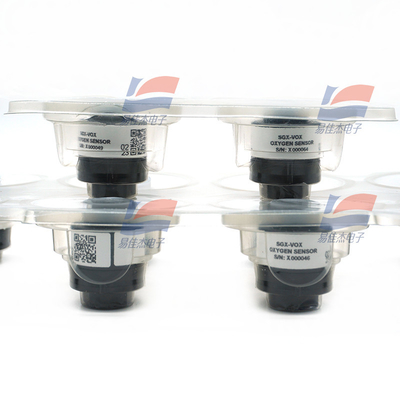

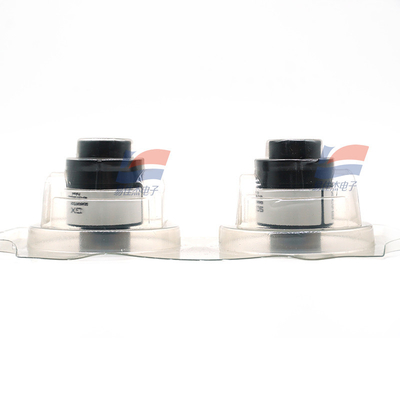

SGX-VOX Oxygen Gas Sensor 5s Response For Medical Instruments Breath Machine
Oxygen Sensor For Medical Instruments O2 Sensor SGX-VOX
Features:
SGX Sensortech SGX-Vox Oxygen Sensor for ventilators is a 0% to 100% oxygen (O2) sensor with onboard temperature compensation. The oxygen sensor has < in air (measured at standard pressure and temperature); Zero current (offset) of 0.1% O2 and output voltage range of 9mV to 13mV. T90 Response time of SGX-VOX Oxygen Sensor < 5 seconds, T99.5 response time < Fifty seconds. The oxygen sensor provides O2 temperature compensation in the temperature range 0°C to 40°C. Two percent. The SGX-VOX oxygen sensor does not produce cross-sensitivity effects because the toxic gas content reaches the threshold limit value (TLV). The oxygen sensor is not suitable for continuous operation at carbon dioxide (CO2) concentrations exceeding 25%. The SGX-VOX sensor is not designed for use in applications where radioactive gases are present.
Specifications:
| T99.5 Response time lt | 50 seconds |
| Recommended load resistor | 10KΩ |
| Long-term output drift | per year < 5% |
| 375000% O2 hours | (at 20°C) |
| Repeatability | ±0.05%F.S (typical value) |
