Product Details:
|
| Response Time: | 30S | Overload: | 2000PPM |
|---|---|---|---|
| Size: | Φ32.3 X 16.5 | Sensitivity: | 420 To 650 NA/ppm |
| Highlight: | 50CO B4F Carbon Monoxide Sensor,50CO B4F Air Quality Monitoring System,1mA Carbon Monoxide Sensor |
||

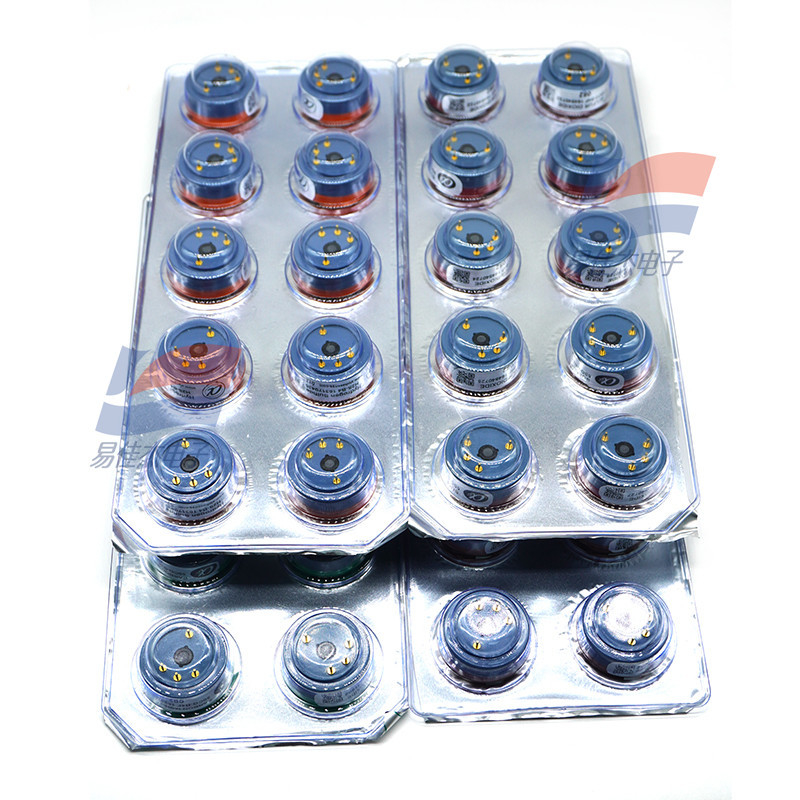

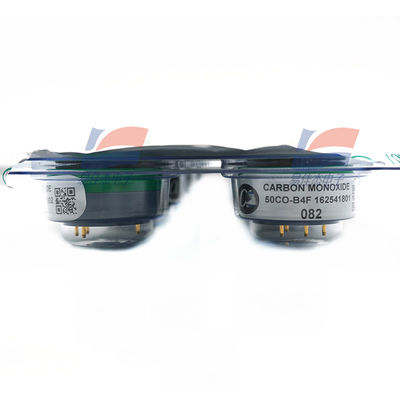

50CO-B4F Carbon Monoxide Gas Sensor Ambient Air Quality Monitoring System
Ambient Air Quality Monitoring System With High Resolution Carbon Monoxide Sensor 50CO-B4F
Features:
Overload: 2000ppm
Response time: < 30s
Size: Φ32.3 x 16.5
Carbon monoxide detection range: 0-1000ppm
Sensitivity: 420 to 650 nA/ppm
Zero point: +30 ~ -250nA
2. Typical application of carbon monoxide sensor
Air quality trace carbon monoxide monitoring, carbon monoxide gas transmitter
Specifications:
| Storage temperature | -40~+90℃ |
| Operating temperature | -30~+85℃ |
| Reverse voltage | 2V (max) |
| Forward current | 1mA (max) |
