5SO2-B4F Sulfur Dioxide Gas Detector Air Quality Trace Monitoring Five Series

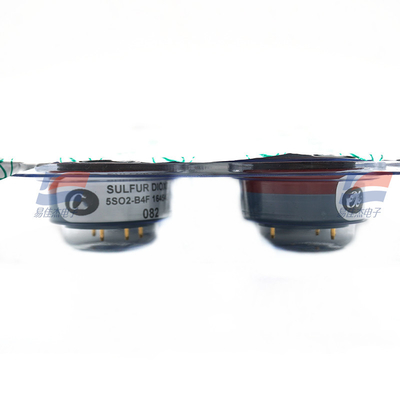

Large Image : 5SO2-B4F Sulfur Dioxide Gas Detector Air Quality Trace Monitoring Five Series

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	5SO2-B4F

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	canned
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

5SO2-B4F Sulfur Dioxide Gas Detector Air Quality Trace Monitoring Five Series

Description

Measurement Range:

20ppm

Sensitivity:

180 ~ 350nA/ PPM

Response Time:

12s

Range:

5ppm

Highlight:

5SO2 B4F Sulfur Dioxide Gas Detector

5SO2 B4F Sulphur Dioxide Sensor

12s Sulfur Dioxide Gas Detector

5SO2-B4F Sulfur Dioxide Gas Detector Air Quality Trace Monitoring Five Series

Features:

Main parameters of sulfur dioxide sensor so2-d4 so2-b4f

Measurement range: 20ppm

Sensitivity: 180 ~ 350nA/ PPM

Response time: < 12s

- range: 5ppm

Overload: 50 PPM

Resolution: 0.2 PPM

Size: 14.5 * 8.3 Φ

Service life: 2 years

Storage cycle: 6 months

Operating temperature: -20 ~ 50℃

Working humidity: 15 ~ 90% RH

Load resistance: 22 Ω

Ii. Typical application of sulfur dioxide sensor so2-d4 so2-b4f

Sulfur dioxide gas transmitter, various sulfur dioxide detection occasions

Specifications:

Sensitivity at 2ppmSO2 sensitivity	(nA/ PPM) -175~-450
reaction time from zero to 2ppmNO2	2ppmNO2 is t90 (s) <60
output (nA)	-50~+70 in zero level air at 20℃
Noise * standard deviation	±2 (equivalent PPB) 15

5SO2-B4F Sulfur Dioxide Gas Detector Air Quality Trace Monitoring Five Series 0
