Product Details:
|
| Storage Temperature: | 10℃ ~ 30℃ | Service Life: | 2 Years (in The Air) |
|---|---|---|---|
| Storage Time: | 6 Months (in Special Packaging Box) | Warranty Period: | 12 Months |
| Highlight: | 7ETO 20 Gas Sensor,Ethylene Oxide Electrochemical Gas Sensor,7ETO Electrochemical Sensor |
||

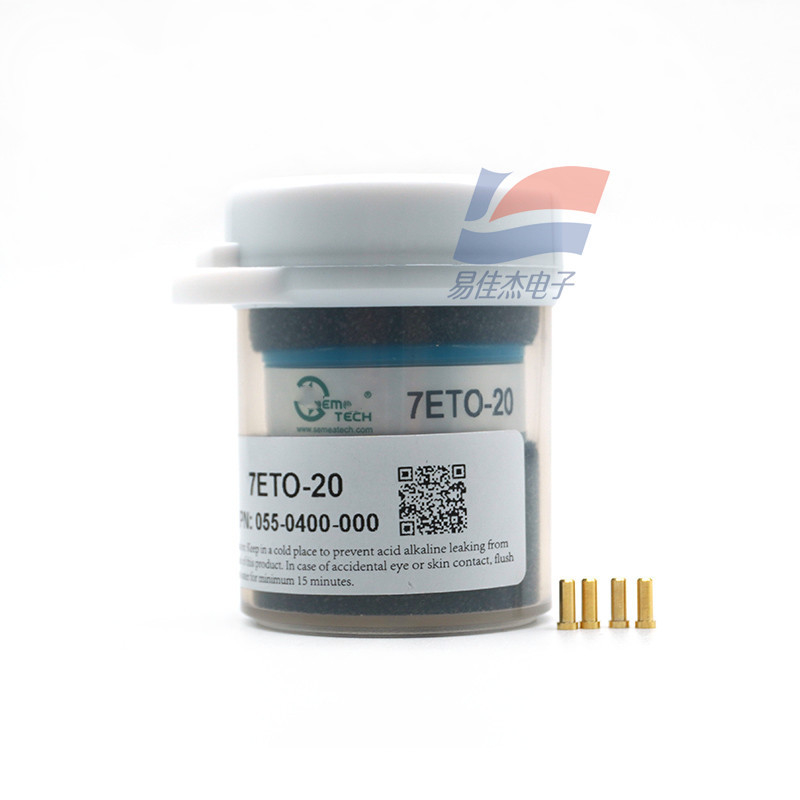

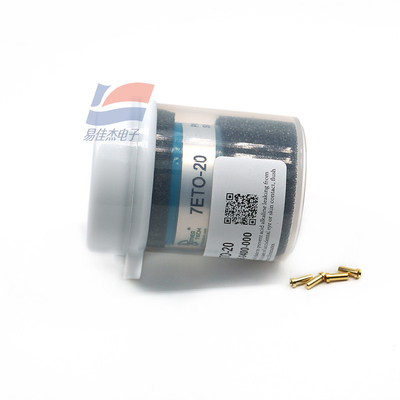

7ETO-20 7 Series Gas Sensor Ethylene Oxide Electrochemical Sensor
Features:
Product description
This product is used to measure the concentration of ethylene oxide gas. It can be used to replace the standard Series 7 ethylene oxide electrochemical sensor through the pin.
Performance parameter
The range is 0 ~ 20 ppm
Maximum load 100 ppm
Sensitivity (20℃) 2.25 ± 0.65 μA/ppm
Response time (T90) ≤ 120 s
Baseline (20℃) -0.2 ~ 2.5 μA
Baseline drift (-20℃ ~ 50℃) < 2 ppm
Resolution 0.1ppm
linearity
Bias +300 mV
Specifications:
| Temperature ranges from | -20℃ to 50℃ |
| Pressure range | 1 ± 0.1 standard atmosphere |
| Humidity range | 15%-90% RH (no condensation) |
| Long-term stability < | 2% signal value per month |
