Product Details:
|
| Loop Voltage: | Vc ≤24V DC | Heating Voltage: | VH 2.8V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance: | The RL Is Adjustable | Heating Resistance: | RH 80 + 20Ω (room Temperature) |
| Heating Power Consumption: | PH ≤80mW | ||
| Highlight: | Combustible MEMS Sensor,GM 402B MEMS Sensor,GM 402B MEMS Vibration Sensor |
||

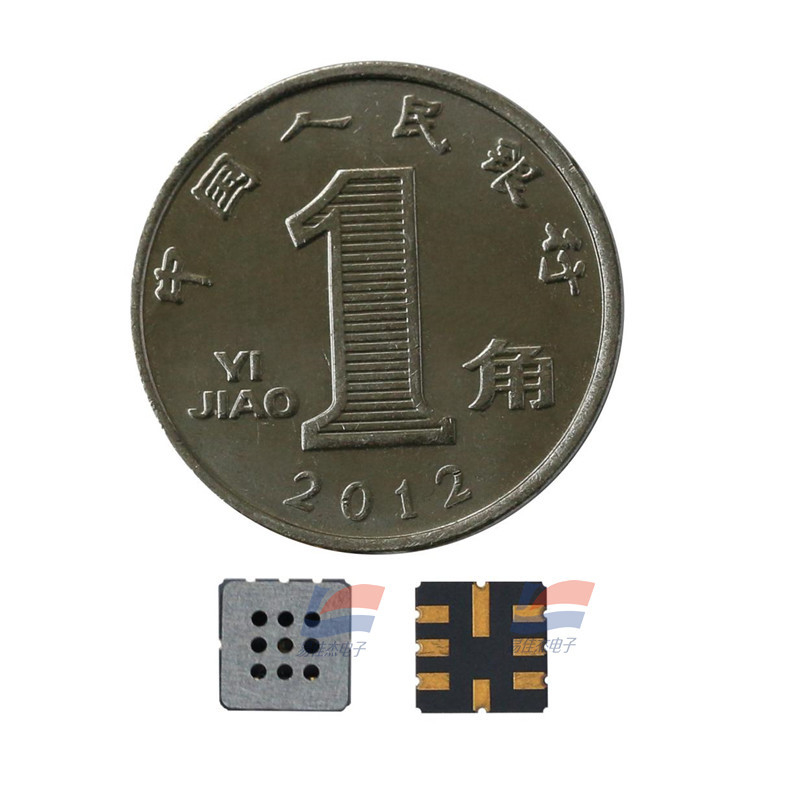

GM 402B Combustible MEMS Sensor For Detecting Gas Leakage At Home
MEMS Combustible Gas Sensor GM-402B For Detecting Gas leakage At Home And Other Places
Features:
MEMS combustible gas sensor is composed of a Si-based microhot plate from the MEMS process and a metal oxide semiconductor material with low conductivity in clean air. When the detected gas exists in the ambient air, the conductivity of the sensor changes. The higher the concentration of the gas, the higher the conductivity of the sensor. A simple circuit is used to convert the change in conductivity into an output signal corresponding to the concentration of the gas.
Specifications:
| Product type | MEMS combustible gas sensor |
| Standard package | ceramic package |
| Detection gas | methane, propane, etc |
| Detection concentration | 1ppm~10000ppm (C3H8) |
