Product Details:
|
| Loop Voltage: | Vc ≤24V DC | Heating Voltage: | VH 2.5V±0.1V AC Or DC |
|---|---|---|---|
| Load Resistance: | RL Adjustable | Heating Resistance: | RH 80 + 20Ω (room Temperature) |
| Highlight: | MEMS Alcohol Gas Sensor,GM 302B Gas Sensor,GM 302B MEMS Alcohol Sensor |
||

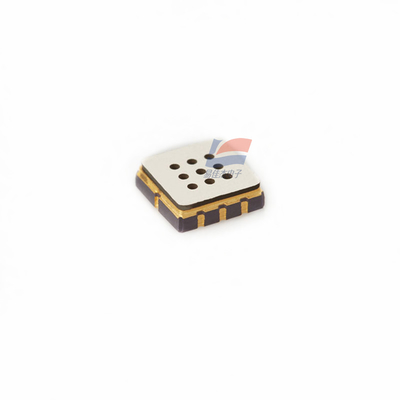

GM-302B MEMS Alcohol Gas Sensor For Detection Of Ethanol Vapors
Features:
MEMS alcohol gas sensor uses MEMS process to make a micro-hot plate on Si substrate. The gas-sensitive material used is metal oxide semiconductor material with low conductivity in clean air. When the sensor is in a gas environment, the conductivity of the sensor changes with the concentration of the detected gas in the air. The higher the concentration of the gas, the higher the conductivity of the sensor. A simple circuit is used to convert the change in conductivity into an output signal corresponding to the concentration of the gas.
Main application
Mobile phone/computer and other consumer sub-products should be used to detect the alcohol vapor in the place, motor vehicle drivers and other risk operation personnel drunken supervision
Adopt MEMS process, strong structure, good shock resistance
Small size, low power consumption, high sensitivity, fast response recovery
Simple driving circuit, good stability, long life, etc
Specifications:
| Product type | MEMS Alcohol gas sensor |
| Standard package | ceramic package |
| Detection gas | ethanol vapor |
| Detection concentration | 1ppm ~ 500ppm |
