Product Details:
|
| Interface Level: | 3.3V(compatible With 5V) | Measuring Range: | Optional From 400 To 10000ppm |
|---|---|---|---|
| Output Signal: | Serial Port (UART)(TTL Level 3.3V) PWM | Preheating Time: | 1min |
| Highlight: | Air Purification Gas Detection Sensor,MH Z19E Gas Detection Sensor,Air Purification Carbon Dioxide Meter |
||

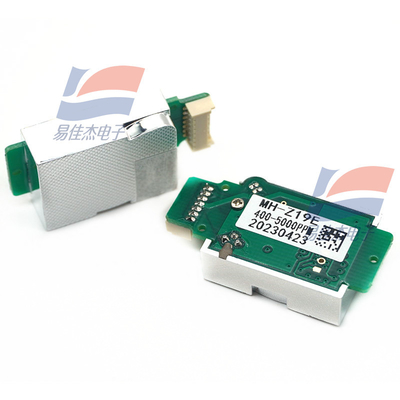

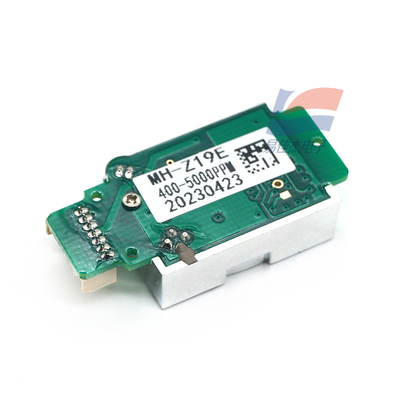

MH Z19E Air Purification Gas Detection Sensor Carbon Dioxide Meter For HVAC And IAQ
Air Purification Equipment Smart Home And Other Occasions For MH-Z19E Carbon Dioxide Gas Sensor
Features:
MH-Z19E carbon dioxide gas sensor (hereinafter referred to as the sensor) is a general intelligent small sensor, there are two kinds of products, pin and terminal, using non-dispersive infrared (NDIR) principle to detect CO2 in the air, has good selectivity, no oxygen dependence, long life and so on. Built-in temperature compensation; At the same time with serial output, PWM output, easy to use. The sensor is a high performance sensor made by combining mature infrared gas detection technology with precise optical path design and sophisticated circuit design.
Hvac refrigeration equipment, air quality monitoring equipment, fresh air system, air purification equipment, smart home
Specifications:
| Detected gas | Carbon dioxide |
| Supply voltage | DC(5.0±0.1)V |
| Average current | < 40mA (@5V power supply) |
| Peak current | 90 mA |
