WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

I'm Online Chat Now

WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors
WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

Large Image :  WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

Product Details:
Place of Origin: CHINA
Brand Name: Winsen
Model Number: WSP5110
Payment & Shipping Terms:
Minimum Order Quantity: 5
Packaging Details: braid
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1501/pcs/pre

WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors

Description
Loop Voltage: Vc ≤24V DC Heating Voltage: VH 5.0V±0.2V AC Or DC
Load Resistance: RL Adjustable Heating Resistance: RH 90Ω±10Ω (room Temperature)
Highlight:

WSP5110 Freon Sensor

,

Refrigerant Leak Freon Sensor

,

Freon Refrigerant Leak Detectors

WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors



WSP5110 Freon Sensor Used In The Home Environment Of Freon Detection Gas Device And Other Fields



Features:

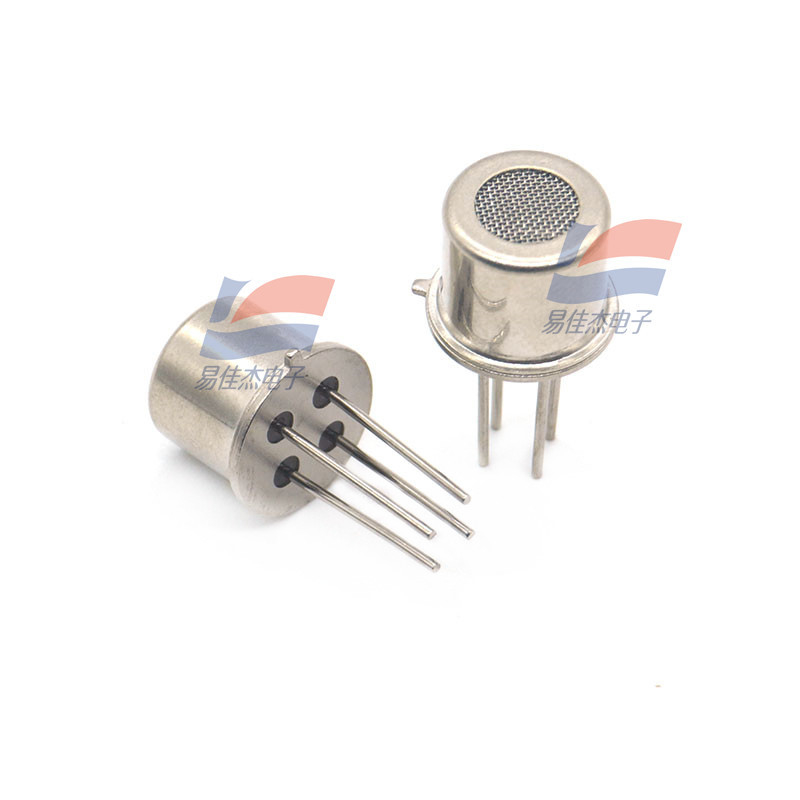

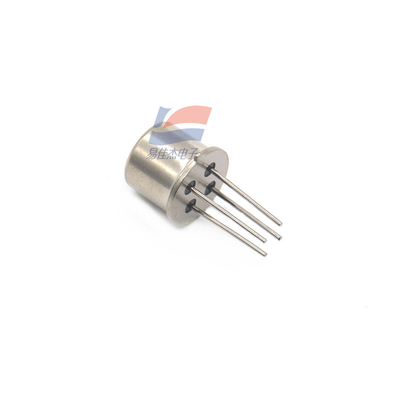

WSP5110 Freon gas sensitive element adopts advanced plane production technology, forming heater and metal oxide semiconductor gas sensitive material on micro Al2O3 ceramic substrate, with electrode lead out, encapsulated in metal tube seat, tube cap. When the detected gas is present, the higher the concentration of the gas in the air, the higher the conductivity of the gas sensor. This change in conductivity can be translated into an output signal corresponding to the gas concentration using a simple circuit.



Specifications:

Product type planar semiconductor gas sensor
Standard package metal
Detection gas refrigerant, benzene, alcohol, etc
Detection concentration 10-1000ppm



WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors 0WSP5110 Freon Sensor Fast Response Refrigerant Leak Detectors 1
