Product Details:
|
| Long-term Stability: | < 2% Signal | Operating Temperature: | -20 ° C To 50 ° C |
|---|---|---|---|
| Working Humidity: | 15 To 90%RH (no Condensation) | Storage Time: | 6 Months (in Special Box) |
| Highlight: | Nitric Oxide Gas Sensor Probe,4NT Gas Sensor Probe,Nitric Oxide Gas Analyzer Probe |
||

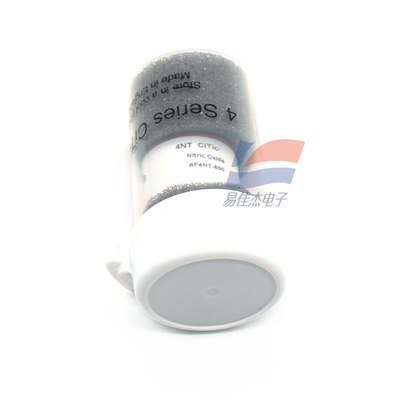

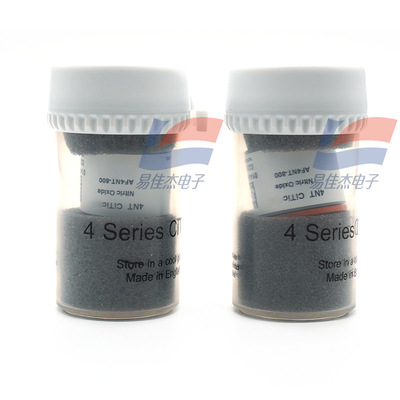

4NT AF4NT-800 Nitric Oxide Gas Sensor Probe For Gas Analyzer 3 Electrode Electrochemical
Features:
Product characteristics
High precision electrochemical sensor
The shell is designed with small holes to limit the diffusion of gas
The induced output signal is proportional to the concentration in the ppm range
Technical parameter
Performance characterization
Gas type nitric oxide /NO
Sensor principle electrochemistry
Range 0 to 250 ppm
Maximum load 1000ppm
Specifications:
| sensitivity | 0.40 ± 0.08 μA/ppm |
| Baseline drift (20 ℃) | 0 to 3 ppm |
| bias | 300 mV |
| Response time (T90) | ≤ 40 seconds |
