Product Details:
|
| Sensitivity: | 650 NA/ppm ± 200 NA/ppm | Zero Current: | ±20nA |
|---|---|---|---|
| Range: | 0-5ppm | Maximum: | Overload 10ppm |
| Highlight: | EC4-Br2-5 Gas Sensor,Bromine Gas Sensor,5ppm Bromine Sensor |
||

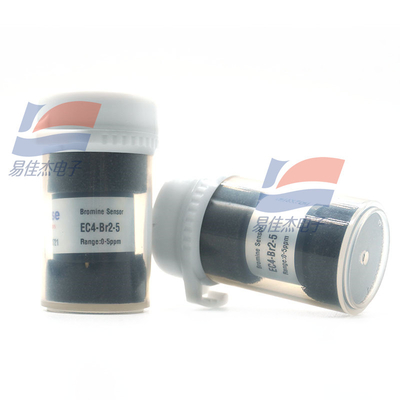

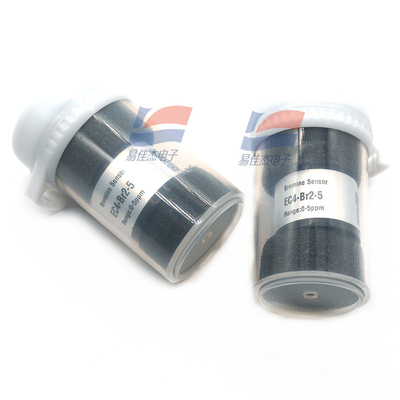

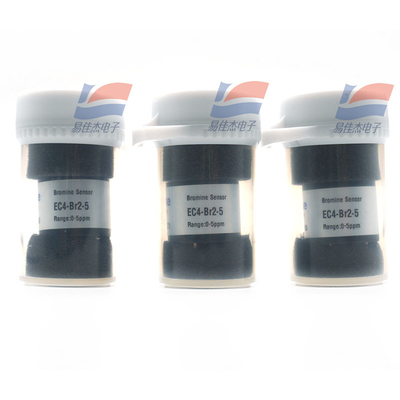

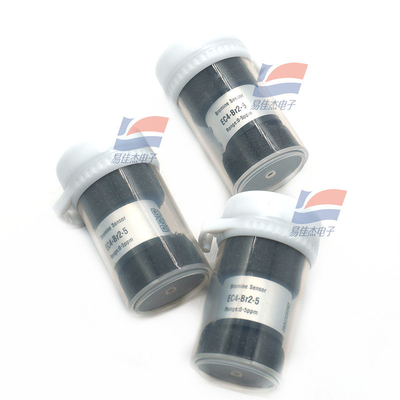

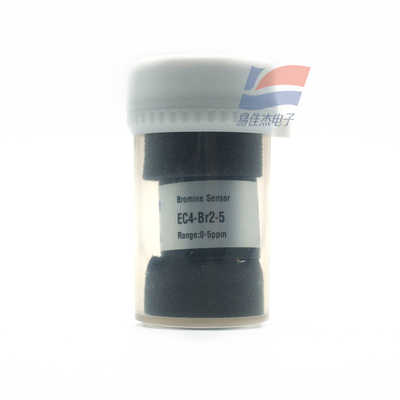

EC4-Br2-5 Bromine Gas Sensor Electrochemical 3 Electrode 0-5ppm Range Electrochemical Catalytic Reaction
The EC Sense performance data stated above is based on data obtained under test conditions using the EC Sense gas distribution system and AQS
In the interest of continuous product improvement, EC Sense reserves the right to change design features and specifications without
We are not responsible for any loss, injury or damage caused by this. EC Sense assumes no responsibility for any indirect loss, injury or damage.
Datasheet:
| Resolution (16Bit ADC) | < 0.01ppm |
| Response Time T50 | < 20s, T90 < 60s |
| Repeatability | 2% |
| Lower Detectable Limit (LDL) | < 0.05ppm |
| Linear Range | 5ppm |
| Operating Temperature Range | -20 to +40℃ |
| Operating Humidity Range | 15-95 %RH |
| Operating Pressure Range | 800 to 1200 hPa |
| Storage Temperature | 0 to 20℃ |
