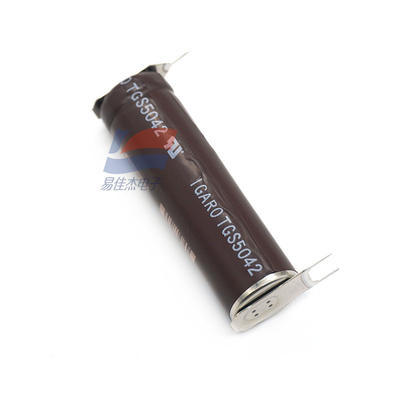

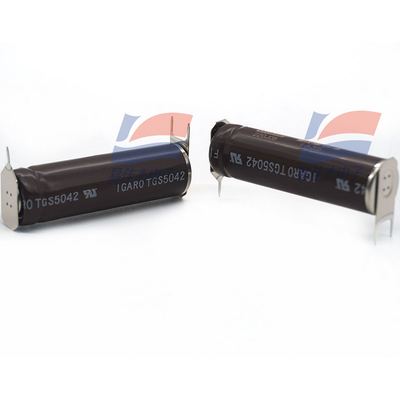

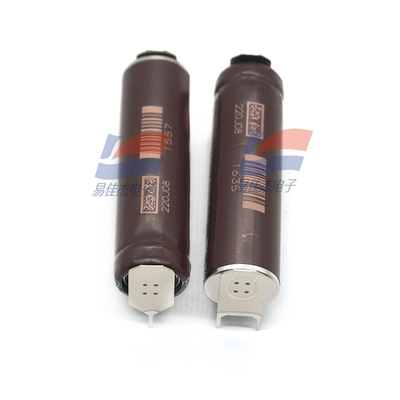

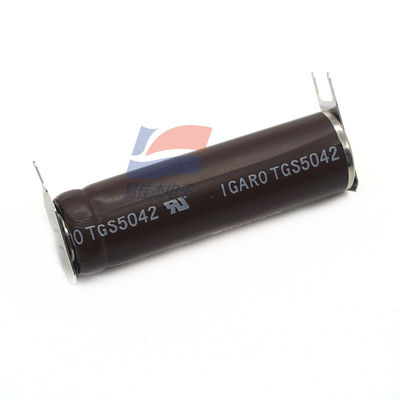

TGS5042 Carbon Monoxide Gas Sensor CO Monitors For Industrial Applications High Repeatability

Large Image : TGS5042 Carbon Monoxide Gas Sensor CO Monitors For Industrial Applications High Repeatability

Product Details:

Place of Origin:	Japan
Brand Name:	Figaro
Model Number:	TGS5042

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Months

Contact Now

TGS5042 Carbon Monoxide Gas Sensor CO Monitors For Industrial Applications High Repeatability

Description

Highlight:

TGS5042 CO Monitors

Industrial Carbon Monoxide Gas Sensor

Battery operable CO Monitors

TGS5042 Carbon Monoxide Gas Sensor CO Monitors For Industrial Applications High Repeatability

Features
* Battery operable
*High repeatability/selectivity to CO
* Linear relationship between CO gas
concentration and sensor output
Applications:
*Residential and commercial CO detectors
* CO monitors for industrial applications
* Ventilation control for indoor parking garages
* Fire detection
*Simple calibration
Long life
* UL recognized component
* Meets UL2034,EN50291, and RoHS requirements

Datahseet:

Target gases	Carbon monoxide
Typical detection range	0 ~ 10,000ppm
Output current in	CO 1.2~2.4nA/ppm
Baseline offset(*1)	<±10ppm equivalent
Operating temperature	(2,3) 0˚C ~ +50˚C (continuous) -5˚C ~ +55˚C (intermittent)
Operating humidity	5 ~ 99%RH (no condensation)
Response time (T90)	Within 60 seconds
Storage conditions	(2,3) -5˚C ~ +55˚C
Weight approx.	12g
Standard test conditions	20±2˚C, 40±10%RH

TGS5042 Carbon Monoxide Gas Sensor CO Monitors For Industrial Applications High Repeatability 0
