NH3 3E 500 SE Ammonia Gas Sensor Electrochemical 0 To 500PPM NH3 Gas Sensor

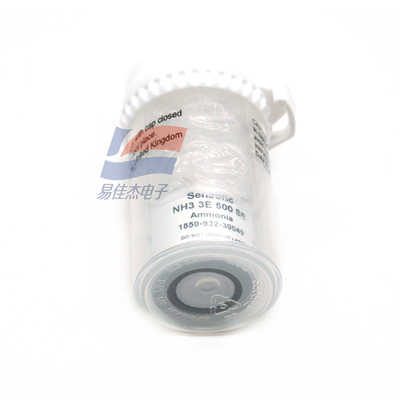

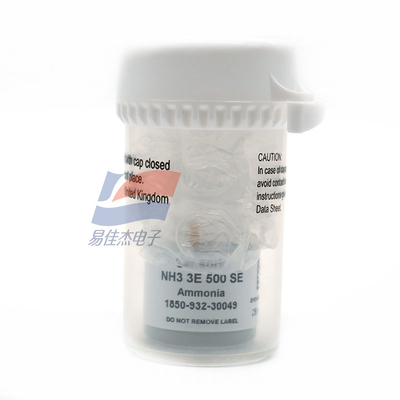

Large Image : NH3 3E 500 SE Ammonia Gas Sensor Electrochemical 0 To 500PPM NH3 Gas Sensor

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	NH3 3E 500 SE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

NH3 3E 500 SE Ammonia Gas Sensor Electrochemical 0 To 500PPM NH3 Gas Sensor

Description

Measuring Range:

0-500ppm

Sensitivity Range:

35nAm : 15nAm

Expected Operating Life:

>24 Months In Air

Zero Current At 20C:

<+ 100nA, Typically 40nA

Highlight:

NH3 3E 500 SE

500PPM Ammonia Gas Sensor

Electrochemical NH3 Gas Sensor

NH3 3E 500 SE Ammonia Gas Sensor Electrochemical 0 To 500PPM NH3 Gas Sensor

Features
1. Amperometric 3 electrode sensor cell
2. Low susceptibility to abrupt changes of humidity
3. No CO2 interference
4. High selectivity
5. 0 voltage biased operation

N.B.All technical specifications are based on conditionsotherwise noted.

Typical Applications
1. Portable & fixed point applications
2. Monitoring of IDLH levels, General Industry,
3. Chemical Industry, Food & Refrigeration Industry

Datasheet:

Temperature Range	-20°C to +40°C
Bias Potential	0mV
Long Term Sensitivity Drift	<5% per 6 months
Pressure Coefficient	<0.03% signal/mBar
Operating Humidity	15-90% RH non-condensing
Effect of Humidity	No effect on zero readingduring abrupt changes of RH

NH3 3E 500 SE Ammonia Gas Sensor Electrochemical 0 To 500PPM NH3 Gas Sensor 0
