4PH3-20 CLE-1121-400 Phosphine Electrochemistry Gas Sensor 0 - 20 Ppm Range

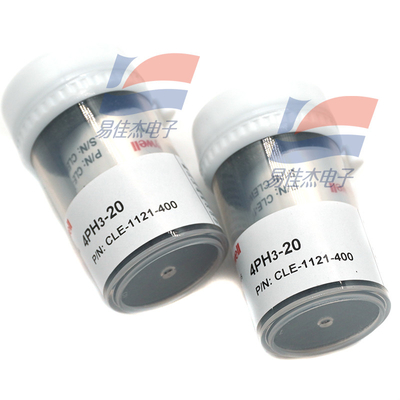

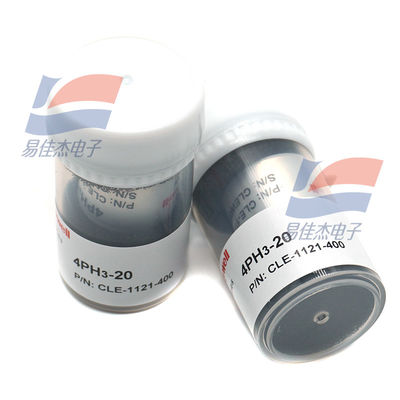

Large Image : 4PH3-20 CLE-1121-400 Phosphine Electrochemistry Gas Sensor 0 - 20 Ppm Range

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	4PH3-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Months

Contact Now

4PH3-20 CLE-1121-400 Phosphine Electrochemistry Gas Sensor 0 - 20 Ppm Range

Description

Product Model:

CLE-1121-400

Range:

0 To 20 Ppm

Maximum Load:

100 Ppm

Sensitivity:

1.4  0.6 A/ppm

Highlight:

CLE-1121-400

Phosphine Electrochemistry Gas Sensor

20 ppm Range Phosphine Sensor

4PH3-20 CLE-1121-400 Phosphine Electrochemistry Gas Sensor 0 - 20 Ppm Range

EC-4PH3-20 is a Phosphine sensor which detects Phosphine PH3 in level from 0-20 ppm.This product is for fixed and portal applications for detection of Phosphine (PH3) in industrial,environmental and life safety protection fileds.

Datasheet:

Resolution	0.1 ppm
Response time T90	≤60 seconds
Operating temperature	-20℃ to 50℃
Working humidity	15 to 90%RH (no condensation)
Working pressure	90 to 110 kPa
Bias	0 mV
Storage temperature	0℃ to 20 ℃
Service life	2 years in air

4PH3-20 CLE-1121-400 Phosphine Electrochemistry Gas Sensor 0 - 20 Ppm Range 0
