5NFL AF508-W0P Low Range NO Nitric Oxide Gas Sensor 4 Electrode Electrochemical

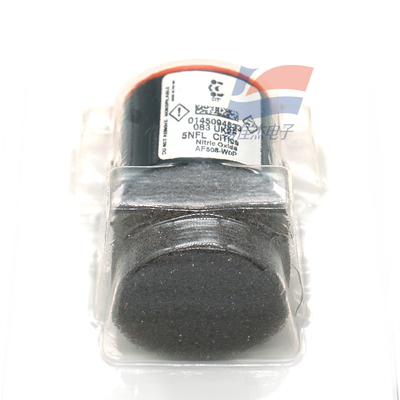

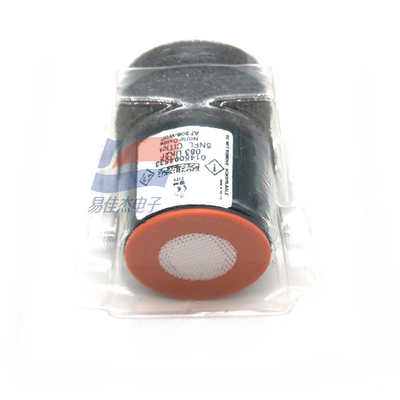

Large Image : 5NFL AF508-W0P Low Range NO Nitric Oxide Gas Sensor 4 Electrode Electrochemical

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	5NFL

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

5NFL AF508-W0P Low Range NO Nitric Oxide Gas Sensor 4 Electrode Electrochemical

Description

Operating Principle:

4-electrode Elerochemical

Measurement Range:

0 Ppm To 300 Ppm NO

Maximum Overload:

1000 Ppm NO

Sensitivity:

0.50 MAppm

Highlight:

5NFL Nitric Oxide Gas Sensor

4 Electrode Nitric Oxide Gas Sensor

Electrochemical NO Gas Sensor

5NFL AF508-W0P Low Range NO Nitric Oxide Gas Sensor 4 Electrode Electrochemical

The purpose of this document is to present the performance specification of the 5NFL nitric oxide gas sensor

Datasheet:

T90 Response Time	< 30 seconds
Baseline Offset 0 to	+3 ppm equivalent
Maximum Zero Shift	6 ppm equivalent
Repeatability	2% of signal
Recommended Load Resistor	10 Ω
Bias Voltage	+300 mV

5NFL AF508-W0P Low Range NO Nitric Oxide Gas Sensor 4 Electrode Electrochemical 0
