Product Details:
|
| Operating Humidity: | Low | Life Span: | Long |
|---|---|---|---|
| Signal Output: | Analog | Size: | Small |
| Power Supply: | DC | Weight: | Light |
| Cost: | Reasonable | Sensor Type: | Gas Sensor |
| Highlight: | NH3/SR-1000-S,NH3/SR-1000-S Gas Sensor,High Accuracy Gas Sensor |
||

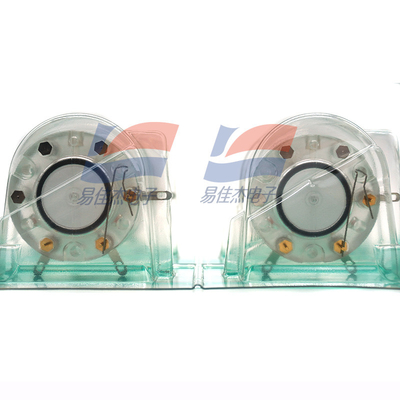

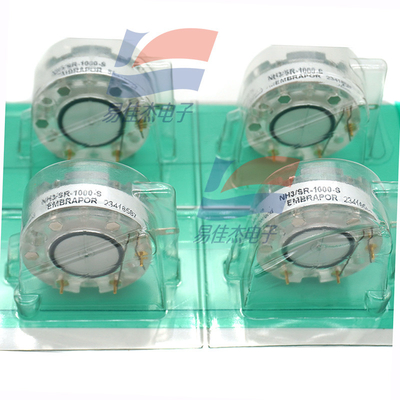

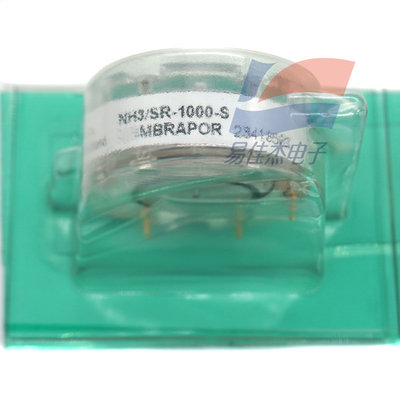

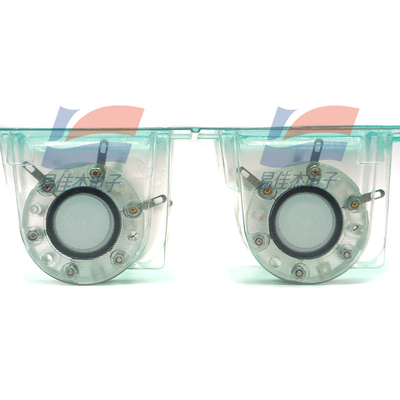

NH3/SR-1000-S Ammonia Gas Sensor High Accuracy Suitable For Low Operating Humidity
Ammonia Gas Sensor NH3/SR-1000-S
NH3 Gas Sensor in Slim Housing
Applications
• Leak Detection
• Discontinuous Measurement
• Safety and Environmental Control
| Operation Principle | 3-Electrode Electrochemical |
| Nominal Range | 0 - 1000 ppm |
| Maximum Overload | 2000 ppm |
| Output Signal | 25 ± 8 nAppm |
| Resolution (Electronics dependent) | < 2.0 ppm |
| T90 Response Time | < 50 s |
| Typical Baseline Range (pure air, 20°C) | -16 ppm to 16 ppm |
| Maximum Zero Shift (+20°C to +40°C) | -32 ppm |
| Repeatability | < 3% of signal |
| Output Linearity | < 5 % full scale |
