Product Details:
|
| Signal Output: | Analog | Weight: | Light |
|---|---|---|---|
| Power Supply: | DC | Cost: | Reasonable |
| Operating Humidity: | Low | Operating Temperature: | Wide Range |
| Size: | Small | Sensor Type: | Gas Sensor |
| Highlight: | Catalytic Oxidation Gas Sensor,Combustible Gas Sensor,PM989-600A-CIT |
||

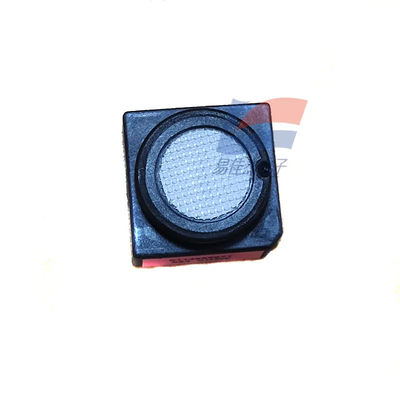

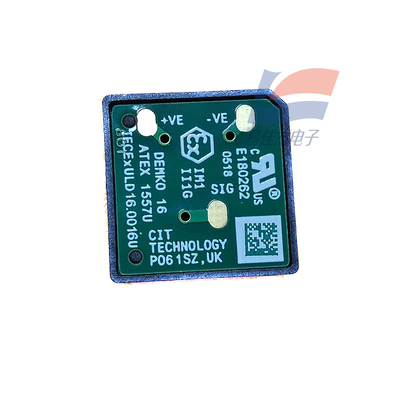

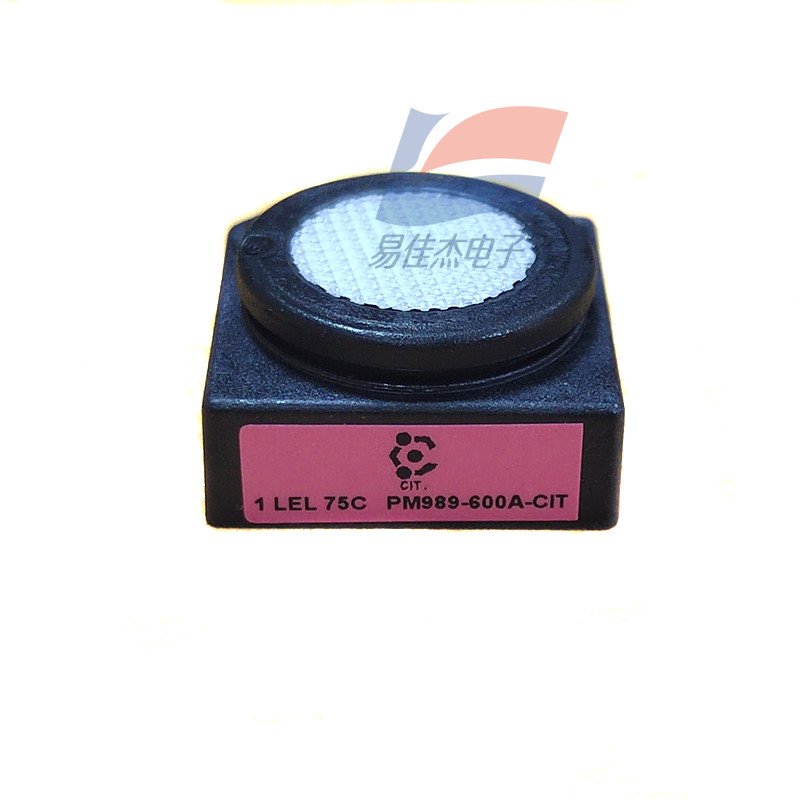

PM989-600A-CIT 1LEL 75C Catalytic Oxidation Combustible Gas Sensor
DOCUMENT PURPOSE
The purpose of this document is to present the performance specification
of the 1LEL 75C Combustible Gas sensor.
This document should be used in conjunction with the 1LEL 75 Characterisation Note, the Operating
Principles (OP01), Instructions for Safe Use and the Product Safety Datasheet.
DESCRIPTION
The 1series analogue gas sensor is compact low profile sensor utilizing the trusted Honeywell Technology. These sensors have an extended operating life of five years along with extended temperature and humidity ranges.
| Operating Principle | Catalytic Oxidation |
| Gases Detected | Most combustible gases and vapours up to C6 |
| Nominal Range | 0 % LEL to 100 % LEL |
| Inboard Filter | To remove H2S |
| Inboard Filter Capacity | 1000 ppm hr min |
