MINI O2 CLE-0231-S00 Gas Oxygen Sensor For O2 Detection Precision 0 To 30% O2 Range

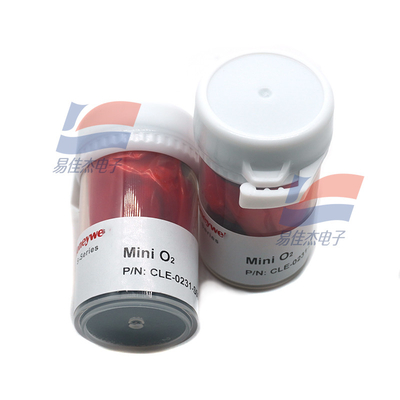

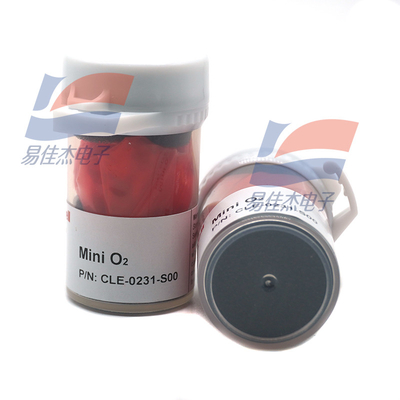

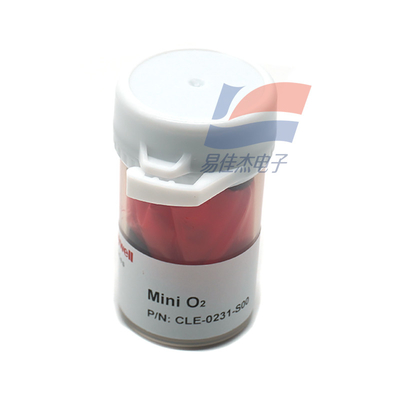

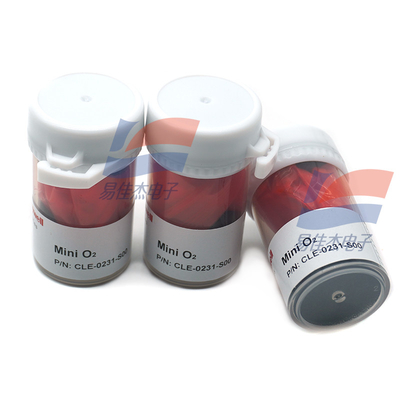

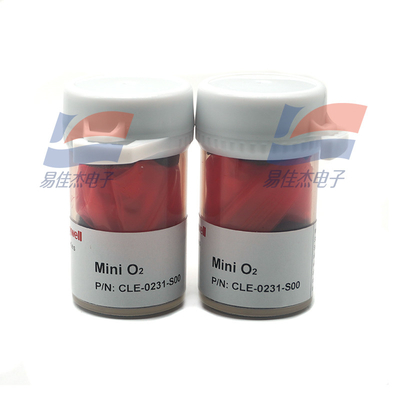

Large Image : MINI O2 CLE-0231-S00 Gas Oxygen Sensor For O2 Detection Precision 0 To 30% O2 Range

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	MINI O2 CLE-0231-S00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

MINI O2 CLE-0231-S00 Gas Oxygen Sensor For O2 Detection Precision 0 To 30% O2 Range

Description

Nominal Range:	0 To 30% O2	Resolution:	0.1% O2
Output Signal:	-85  20 μA In Air	Long Term Output Drift:	< 2% % Signal/ 3 Months
Zero Signal:	-10 ~ 5 μA (in N2)	Response Time (T90):	≤ 15 Seconds
Maximum Overload:	90% O2	Part Number:	CLE-0231-S00
Highlight:	30% O2 Range Gas Sensor , O2 Detection Gas Sensor , CLE-0231-S00 Gas Sensor

MINI O2 CLE-0231-S00 Gas Oxygen Sensor For O2 Detection Precision 0 To 30% O2 Range

Part Number	CLE-0231-S00
Nominal Range	0 to 30% O2
Maximum Overload	90% O2
Output Signal	-85 ± 20 μA in air
Zero Signal	-10 ~ 5 μA (in N2)
Resolution	0.1% O2
Response Time (T90)	≤ 15 seconds
Long Term Output Drift	< 2% % signal/ 3 months

Temperature Range	-20℃ to 50℃
Operating Humidity	5 to 90%RH non-condensing
Pressure Range	80 to 120 kPa
Bias Potential	-600 mV
Storage Life	6 months in sealed container
Storage Temperature	0℃ to 20℃
Expected Operating Life	2 years in air
Warranty	12 months from date of despatch

MINI O2 CLE-0231-S00 Gas Oxygen Sensor For O2 Detection Precision 0 To 30% O2 Range 0
