Product Details:
|
| Load Resistance: | 0.45kΩ Min | Circuit Voltage: | Max. 24V |
|---|---|---|---|
| Sensor Resistance: | 1kΩ ~ 10kΩ | Heater Voltage: | 5.0±0.2V |
| Heater Resistance: | 38.0 ± 3.0Ω | Heater Power Consumption: | 660mW (typical) |
| Highlight: | 660mW Gas Sensor,TGS822 Gas Sensor,10kΩ Gas Sensor |
||

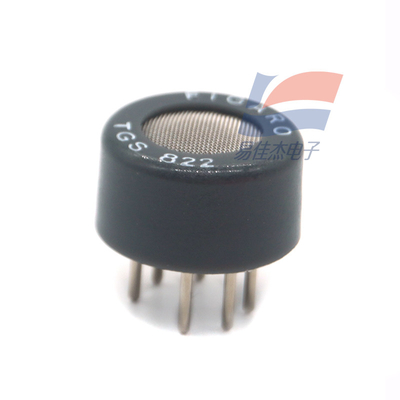

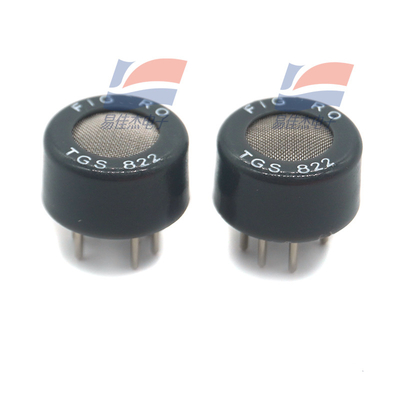

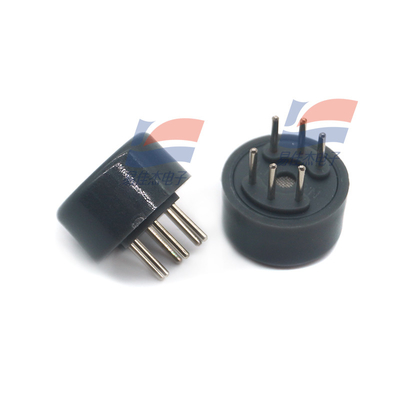

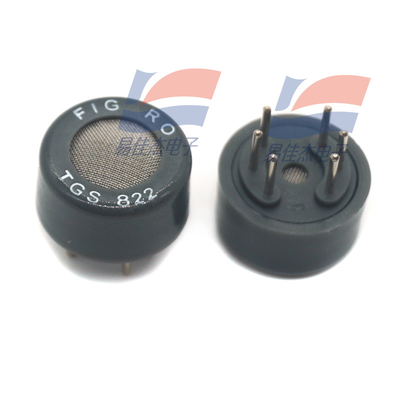

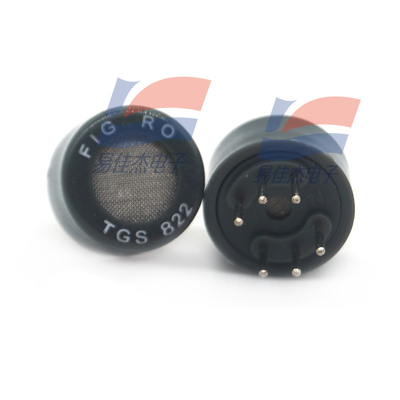

TGS822 Alcohol Gas Sensor Detection Of Organic Solvent Vapors High Stability
Features:
* High sensitivity to organic solvent vapors such as ethanol
* High stability and reliability over a long period
* Long life and low cost
* Uses simple electrical circuit
Applications:
* Breath alcohol detectors
* Gas leak detectors/alarms
* Solvent detectors for factories, dry cleaners, and semiconductor
| Heater Voltage | 5.0±0.2V |
| Circuit Voltage Max. | 24V |
| Load Resistance | Variable |
| Sensor Resistance | 1kΩ ~ 10kΩ |
| Change Ratio of Sensor Resistance | 0.40 ± 0.10 |
