Product Details:
|
| Storage Humidity: | 0﹪～99﹪RH | Anticipated Using Life: | 2 Years |
|---|---|---|---|
| Load Resistance （recommended）: | 10kΩ | Stability（／month）: | ＜2﹪ |
| Repeatability: | ＜2﹪output Value | Measurement Range: | 0～25%Vol |
| Pressure Range: | Normal Atmosphere±10% | Zero Drift（-20℃～40℃）: | ≤0.1%vol |
| Highlight: | 10kΩ Humidity Gas Sensor,0%～99%RH Humidity Gas Sensor,ME2-O2 Humidity Gas Sensor |
||

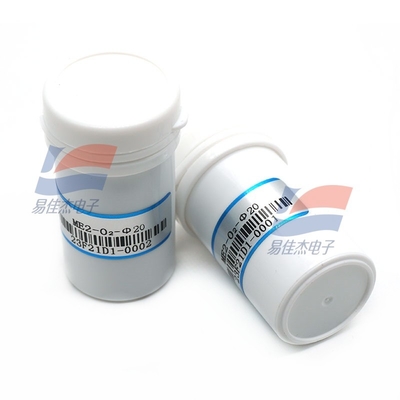

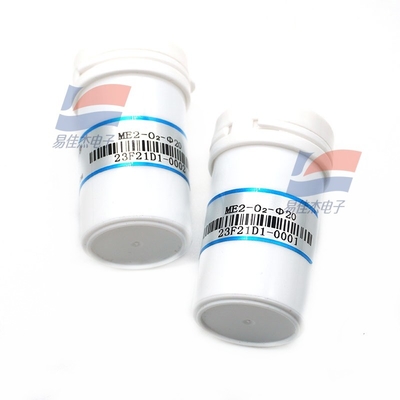

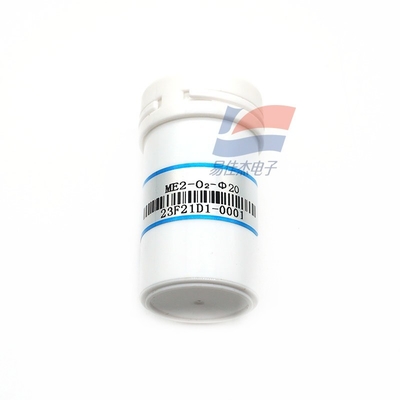

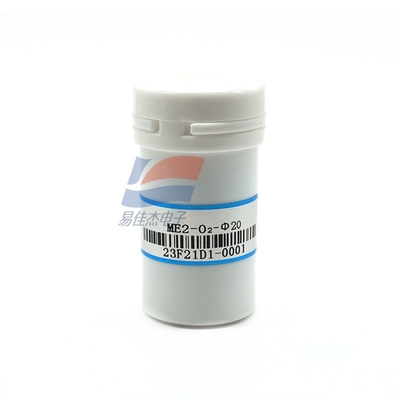

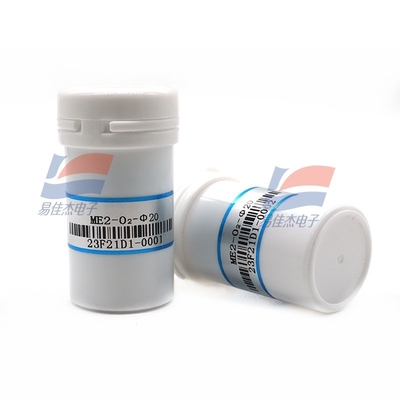

ME2-O2 Oxygen Gas Sensor High Precision Precision With 10kΩ Recommended Load Resistance
The ME2-O2-Ф20 electrochemical sensor is based on the electrochemical principle and detects gas concentration by measuring current. The sensor uses the electrochemical oxidation process of the target gas on the working electrode in the electrolytic cell. The current generated by the target gas in the electrochemical reaction is proportional to its concentration. Following Faraday's law, the gas concentration can be obtained by measuring the current.
| Detection gas | O2 oxygen sensor |
| Measurement range | 0~25% volume |
| Maximum detection concentration | 30% volume |
| Sensitivity | (0.1~0.3) mA (in air) |
| Response time (T90) | ≤15 seconds |
| Load resistance (recommended) | 100Ω |
| Repeatability Output value | <2% |
| Stability (/month) | <2% |
| Zero drift (-20℃～40℃) | ≤0.1%vol |
| Storage temperature | -20℃～50℃ |
| Storage humidity | 0%～99%RH |
| Pressure range Normal atmospheric pressure | ±10% |
| Expected service life | 2 years |
