4CL2-10 Precision Gas Sensor With 0.1 Ppm Resolution Maximum Overload Of 50 Ppm

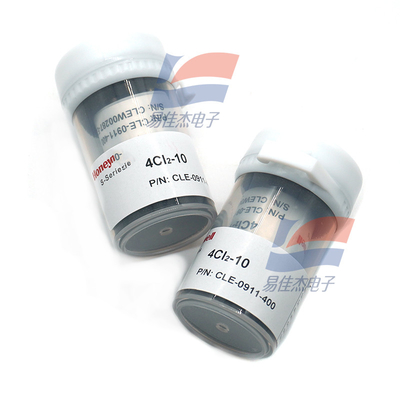

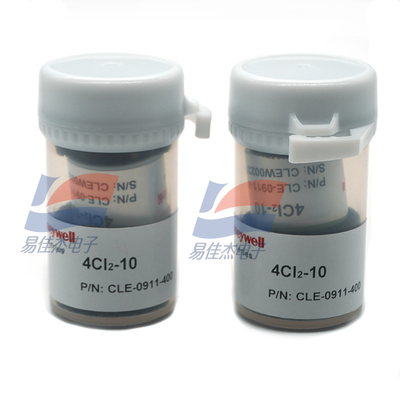

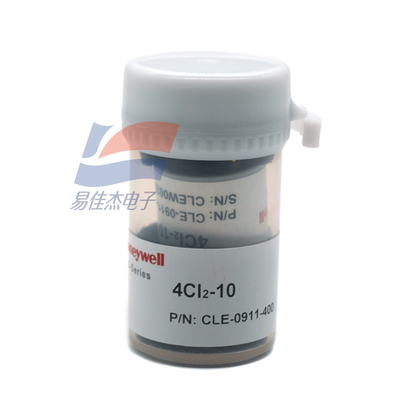

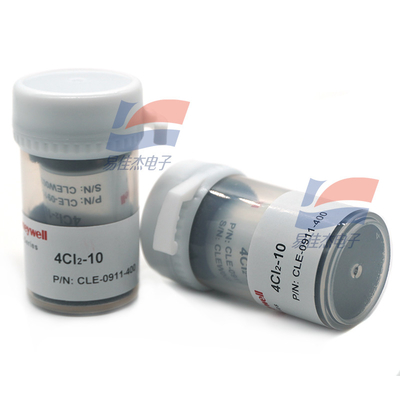

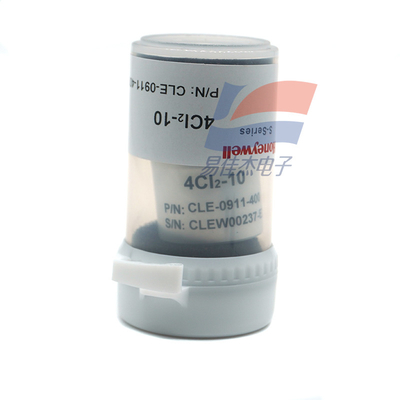

Large Image : 4CL2-10 Precision Gas Sensor With 0.1 Ppm Resolution Maximum Overload Of 50 Ppm

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	4CL2-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

4CL2-10 Precision Gas Sensor With 0.1 Ppm Resolution Maximum Overload Of 50 Ppm

Description

Sensitivity:	0.75±0.15 MAppm	Part Number:	CLE-0911-400
Resolution:	0.1 Ppm	Response Time (t90):	≤30 Sec
Long Term Output Drift:	<2% Signal/month	Baseline Drift:	0 ~ -0.3 Ppm Equivalent
Maximum Overload:	50 Ppm	Baseline（20℃）:	< ±0.1 MA
Highlight:	4CL2-10 Gas Sensor , 50 Ppm Precision Gas Sensor , 0.1 Ppm Resolution Gas Sensor

4CL2-10 Precision Gas Sensor With 0.1 Ppm Resolution Maximum Overload Of 50 Ppm

Part Number	CLE-0911-400
Nominal Range	0-10 ppm
Maximum Overload	50 ppm
Sensitivity	0.75± 0.15 uA/ppm
Baseline(20 oC	< ±0.1 uA
Baseline drift	0 ~ -0.3 ppm equivalent (-20 ~ 40℃)
Resolution	0.1 ppm
Response Time (t90)	≤30 sec
Long term output Drift	<2% signal/month

Temperature Range	-20℃ to 50℃
Operating Humidity	15 ~ 90%RH non-condensing
Pressure Range	15 ~ 90%RH non-condensing
Bias Potential	0 mV
Storage Life	6 months in sealed container
Storage Temperature	0℃to 20℃
Sensor Life Expectancy	2 year
Warranty	12 months from date of shipment

4CL2-10 Precision Gas Sensor With 0.1 Ppm Resolution Maximum Overload Of 50 Ppm 0
