MEu-2O2 Gas Oxygen Sensor 25% Volume Detection Range 30% Maximum with 100Ω Load Resistance

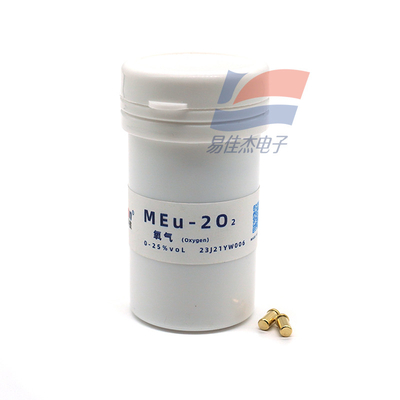

Large Image : MEu-2O2 Gas Oxygen Sensor 25% Volume Detection Range 30% Maximum with 100Ω Load Resistance

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	MEu-2O2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

MEu-2O2 Gas Oxygen Sensor 25% Volume Detection Range 30% Maximum with 100Ω Load Resistance

Description

Operating Humidity:	15%~90% Relative Humidity	Sensitivity:	0.10±0.02mA (in Air)
Operating Pressure:	1 Atmosphere ±10%	Measurement Range:	0~25% Volume
Detection Gas:	Oxygen (O2)	Load Resistance (recommended):	100Ω
Operating Temperature:	-20℃~50℃	Maximum Range:	30% Volume
Highlight:	MEu-2O2 Oxygen Gas Sensor , 100Ω Load Resistance Oxygen Gas Sensor , 25% Volume Oxygen Gas Sensor

Description
The MEu-2O2 oxygen sensor is a fixed potential type sensor. Oxygen undergoes a reduction reaction on the working electrode and a corresponding oxidation reaction on the counter electrode, releasing charge to form a current. The current is proportional to the oxygen concentration and follows Faraday's law.
The magnitude of the current can determine the level of oxygen concentration

Features:

Product Name: Gas Sensor
Detection gas: Oxygen (O2)
Maximum range: 30% Volume
Long-term drift: Less than 2% per month
Load resistance (recommended): 100Ω
Operating pressure: 1 Atmosphere ±10%

Technical Parameters:

Maximum range	30% Volume
Operating temperature	-20℃~50℃
Detection gas	Oxygen (O2)
Sensitivity	0.10±0.02mA (in Air)
Repeatability	<2% Output Value
Operating humidity	15%~90% Relative Humidity
Operating pressure	1 Atmosphere ±10%
Load resistance (recommended)	100Ω
Measurement range	0~25% Volume
Response time (T90)	≤15 Seconds

MEu-2O2 Gas Oxygen Sensor 25% Volume Detection Range 30% Maximum with 100Ω Load Resistance 0
