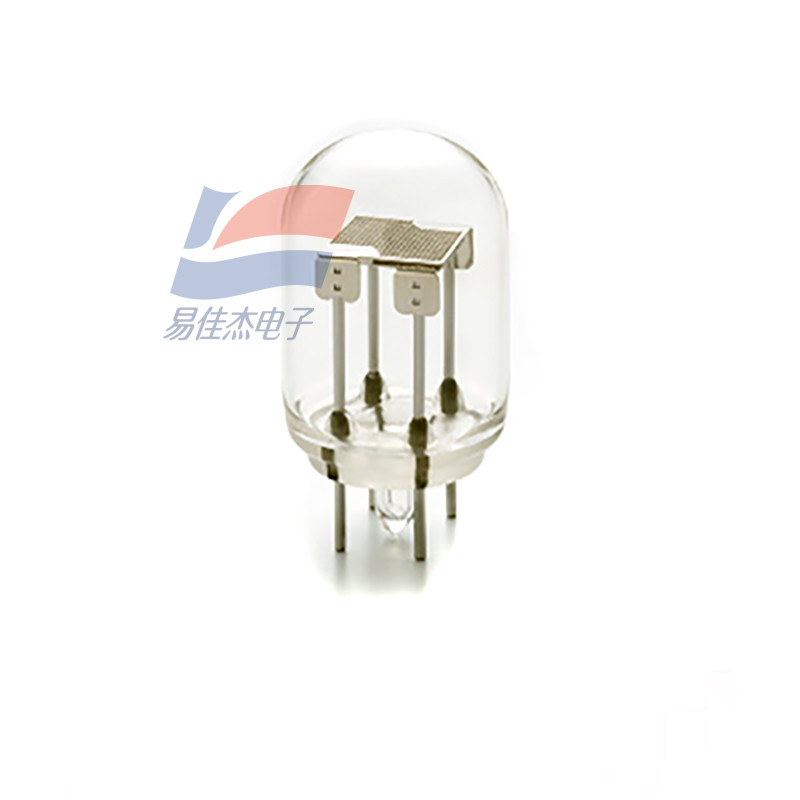

50 MA Peak Current UV Photodiode Sensor With 10000 Min-1 Sensitivity

Product Description:

The UV Photodiode Sensor has an operating supply voltage (DC) of 420 V, making it suitable for use in a wide range of environments. The sensor is also lightweight, weighing only 5.3 G, which makes it easy to install and use in a variety of applications.

The UV Photodiode Sensor is designed to start discharging at a voltage of (DC) 260 V. This ensures that the sensor is able to detect even the slightest changes in UV light levels, making it ideal for use in applications where accuracy is critical. The sensor is also able to operate within a wide temperature range, from -40°C to +125°C, making it suitable for use in harsh environments.

In addition to its high UV sensitivity, the UV Photodiode Sensor also has an average discharge current of 3 MA. This ensures that the sensor is able to provide accurate readings even in high UV light conditions.

The Si Photodiode used in the UV Photodiode Sensor is a highly efficient device that is capable of converting UV light into electrical signals. This makes it suitable for use in a variety of applications where the detection of UV light is critical, such as in the monitoring of UV radiation levels in the environment.

The UV Photodiode Sensor is a reliable and accurate device that is suitable for use in a wide range of applications. Its high UV sensitivity, lightweight design, and ability to operate within a wide temperature range make it an ideal choice for use in harsh environments. Whether you are monitoring UV radiation levels or detecting changes in UV light levels in industrial processes, the UV Photodiode Sensor is the perfect choice for your needs.



Features:

• Product Name: UV Photodiode Sensor
• Operating ambient temperature: -40°C To +125°C
• Average discharge current: 3 MA
• Supply voltage (DC): 420 V
• Spectral response (short): 185 Nm
• Background maximum: 5 Min-1
• Material: Metal Ceramic
• Type: Si Photodiode



Technical Parameters:

Discharge maintenance voltage (DC)	185 V
Discharge start voltage (DC)	260 V
Peak current	50 MA
Spectral response (short)	185 Nm
Sensitivity type	10000 Min-1
Spectral response (long)	260 Nm
Weight	5.3 G
Operating ambient temperature	-40°C To +125°C
Average discharge current	3 MA
Background maximum	5 Min-1

UV Photodiode Sensor for UV to IR, Plastic Package, Si Photodiode



Applications:



Customization:



Support and Services:



FAQ:

Hamamatsu

. 2. Q: What is the model number of this UV Photodiode Sensor? A: The model number of this UV Photodiode Sensor is

R13192

. 3. Q: Where is this UV Photodiode Sensor manufactured? A: This UV Photodiode Sensor is manufactured in

Japan

. 4. Q: What is the wavelength range for this UV Photodiode Sensor? A: The wavelength range for this UV Photodiode Sensor is

185 nm to 1100 nm

. 5. Q: What is the maximum dark current for this UV Photodiode Sensor? A: The maximum dark current for this UV Photodiode Sensor is

0.1 nA

.
