Product Details:
|
| Weight: | 5.3 G | Supply Voltage (DC): | 420 V |
|---|---|---|---|
| Spectral Response (short): | 185 Nm | Discharge Start Voltage: | (DC) 260 V |
| Peak Current: | 50 MA | Background Maximum: | 5 Min-1 |
| Discharge Maintenance Voltage (DC): | 185 V | Sensitivity Type: | 10000 Min-1 |
| Highlight: | 50 MA Peak Current UV Photodiode Sensor,10000 Min-1 UV Photodiode Sensor |
||

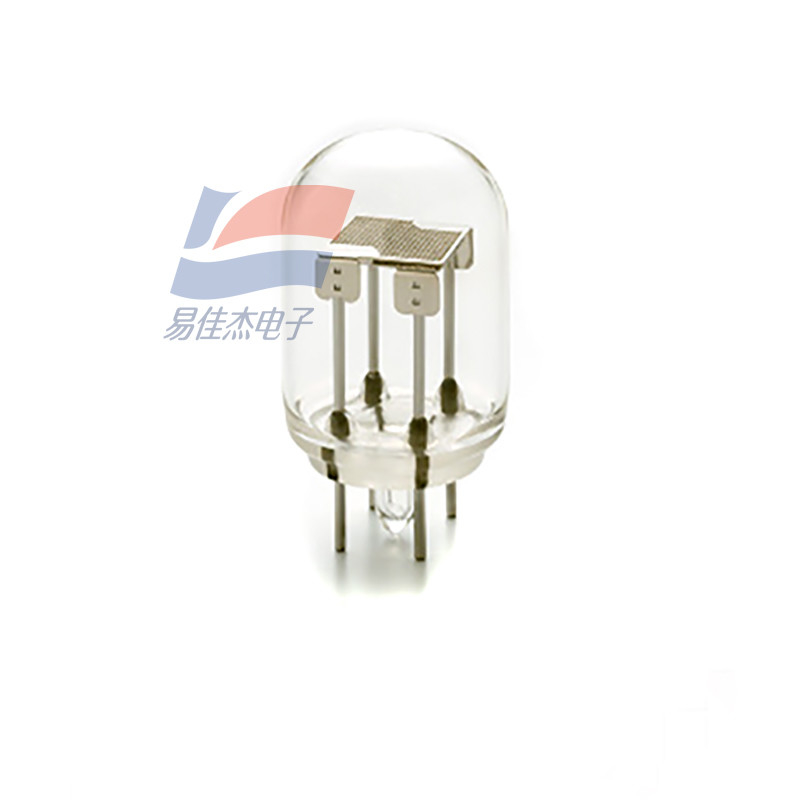

R13192 Flame Discharge Sensor UV TRON High Sensitivity
R13192 has improved sensitivity by redesigning the photosensitive area.
Features
Detects fire at long distances (high sensitivity)
No need to use any optical filters, only detects ultraviolet light
Applications
Fire detection in large-space buildings
Arson monitoring
Discharge detection
| Sensitivity Typical | 15000 min-1 |
| Background Max. | 5 min-1 |
| [Recommended Operating Parameters] Supply Voltage (DC) | 325 V +/- 25 V |
| [Recommended Operating Parameters] Average Discharge Current | 0.3 mA |
| [Recommended Operating Parameters] Quenching Time Min. | 2 ms |
| Applicable Socket (Sold Separately) | E678-9C |
