Product Details:
|
| Oxygen Range: | 0 - 1000 Ppm | Oxygen Pressure Range: | 0 - 1.2 Mbar |
|---|---|---|---|
| Response Time T90: | < 30 Seconds | Purge Time: | ≤30 Minutes |
| Oxygen Partial Pressure: | < 2 % Full Scale (24 µbar) | Pressure: | ± 5 Mbar |
| Highlight: | LOX-Trace-1000-BLX Gas Sensor,260mbar-1260mbar Gas Sensor,RS485 Modbus RTU Gas Sensor |
||

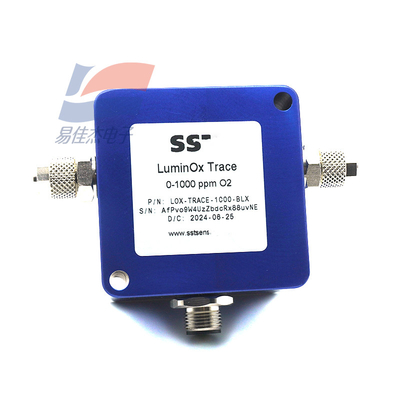

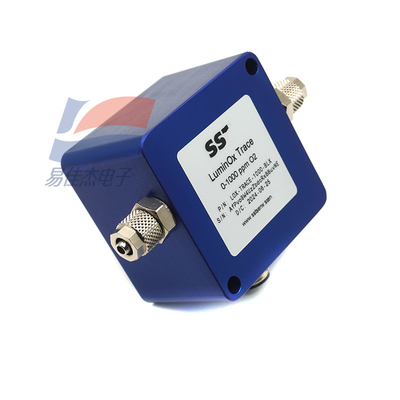

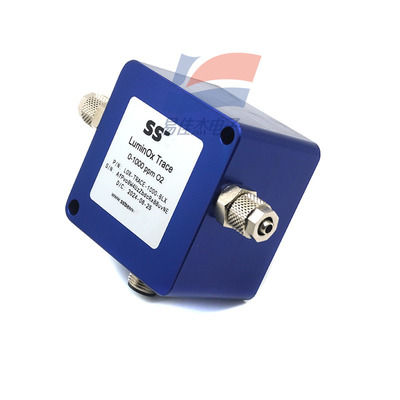

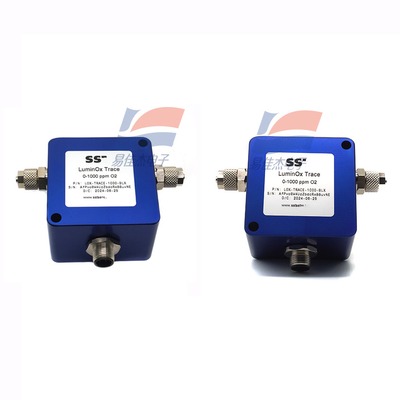

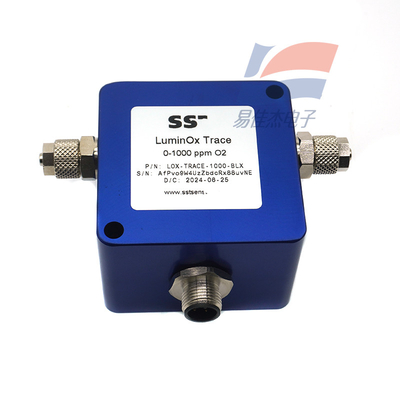

LOX-Trace-1000-BLX Industrial Grade Fluorescence Trace Oxygen Sensor Low Power Consumption
Fluorescence-based optical trace oxygen sensor features:
• Operates at any oxygen concentration without damaging the sensor
• Highly selective and sensitive to oxygen
• Long life, non-depleting technology - no need to store in an inert atmosphere
• Fast response and clearing time
• Direct connection to controller via RS485 interface
• Factory calibrated - user calibrable
• Low power consumption - high accuracy
Optical trace oxygen sensor based on fluorescence Advantages:
• Compact size, flow-through housing, sealed base
• Contains no hazardous materials; RoHS and REACH compliant
• Insensitive to pressure fluctuations
• Can be used in vacuum applications
| Supply voltage (Vs) | 8 - 30 V |
| Supply current (ls) Average | < 30 mA |
| Output type | RS485 Modbus RTU |
| Temperature | Operation: -10 °C to +40 °C Storage: -30 °C to +50 °C |
| Humidity | Dry, clean gas |
| Gas pressure range | 260 - 1260 mbar |
