Product Details:
|
| Resolution: | 1-2000 Ppb (optional) | Detection Range: | 0-10000 Ppm (optional) |
|---|---|---|---|
| Operating Pressure Range: | 800~1200 Mbar | Operating Temperature Range: | -40 To 50°C |
| Repeatability Accuracy: | < ±2% (calibration Point) | Operating Humidity Range: | 0-99% RH (no Condensation) |
| Working Principle: | Photoion Detector | ||
| Highlight: | 4PID-2000 Photoionization Detector Gas Sensor,0-10000ppm Photoionization Detector Gas Sensor,3.3V Photoionization Detector Gas Sensor |
||

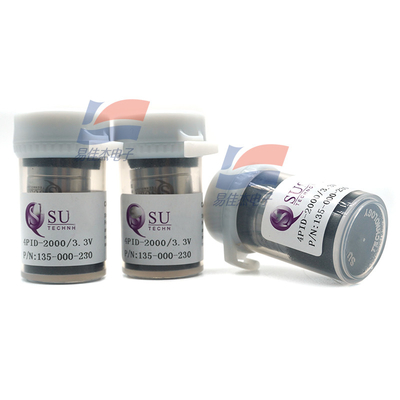

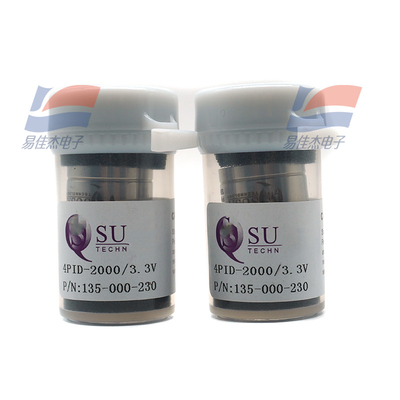

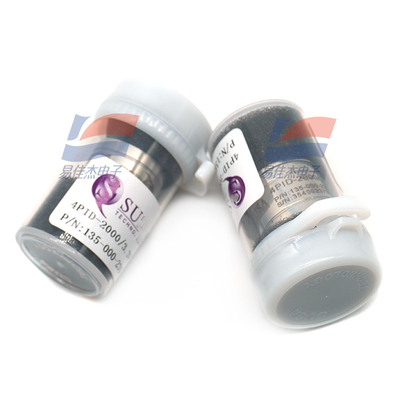

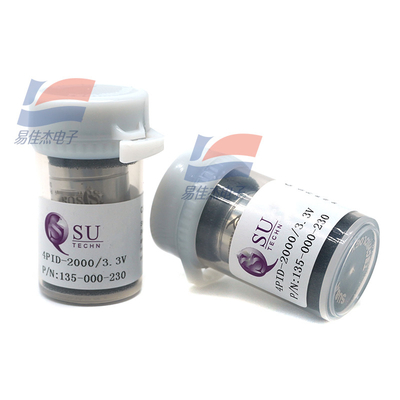

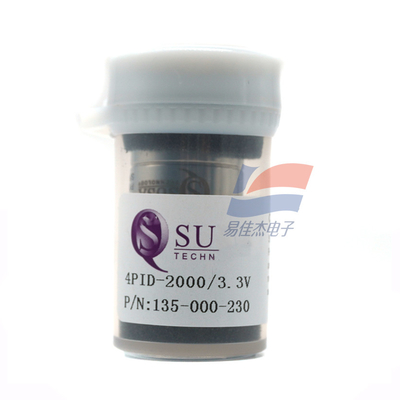

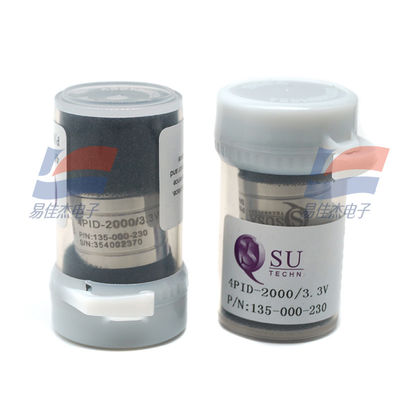

4PID-2000 3.3V Gas Sensor Photoionization Detector For 0-10000ppm Detection
Senovol PID sensors are designed for the detection of a wide variety of volatile organic compounds (VOCs). In generalany compound with an ionization energy (IE) lower than that of the lamp photons can be measured.
Performance Characteristics
|
Photon energy
|
10.6 eV |
| Measurement range | 0 ~ 10,000 ppm isobutylene |
| Resolution | 0.5 ~ 2,000 ppb isobutylene |
| Response time (T90) | < 5 seconds |
| Baseline shift (20℃) | 70 ± 15 mV |
| Linearity linear from | 0.045 ~ 2.5 V |
Environmental
|
Temperature Range
|
-20℃ ~ +50℃ |
| Pressure Range | 1 atm ± 10% |
| Humidity Range | 0 % ~ 99 %RH non-condensing |
