Product Details:
|
| Response Time (T90): | ≤20 Seconds | Maximum Detection Concentration: | 2.0 Mg/L |
|---|---|---|---|
| Repeatability: | ±0.006 Mg/L | Measurement Range: | (0～1.0) Mg/L |
| Load Resistance (recommended): | 10Ω | Sensitivity: | (6±2) μA/(mg/L) |
| Detection Gas: | C2H5OH Alcohol | Stability (/month): | ＜2% |
| Highlight: | Alcohol Detection Gas Sensor,0-1 Mg/L Gas Sensor,Breathalyzer Gas Sensor |
||

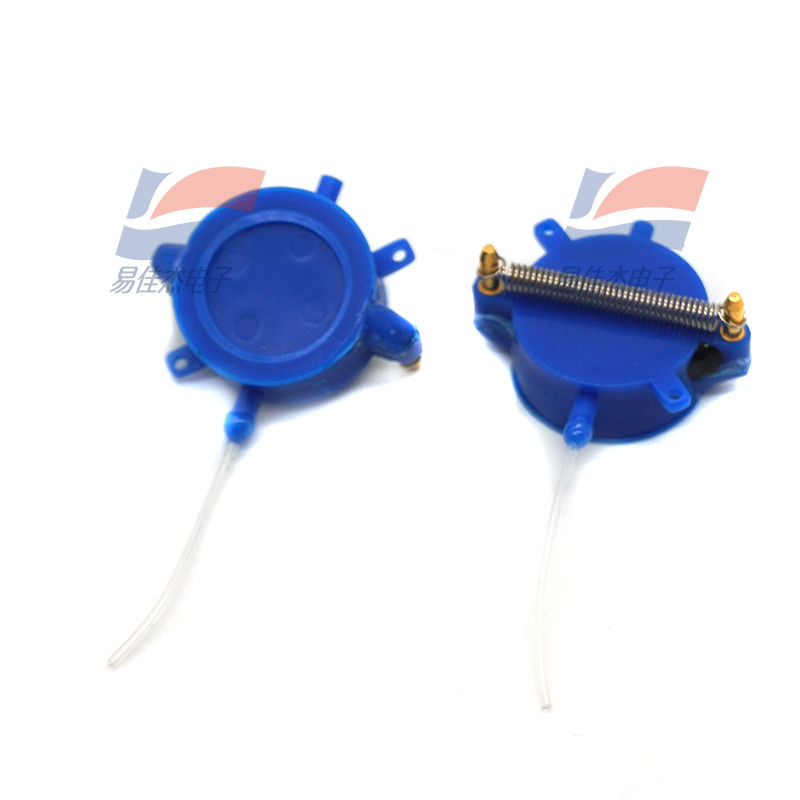

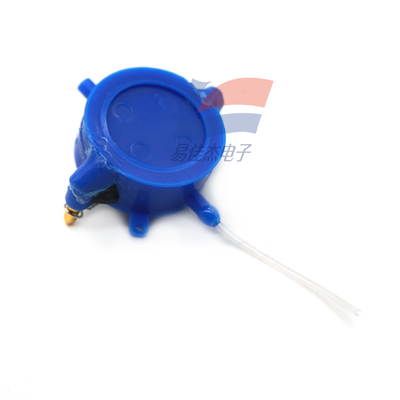

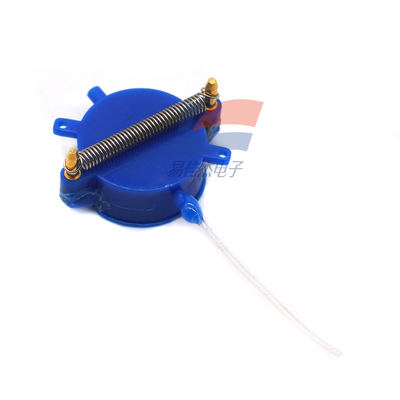

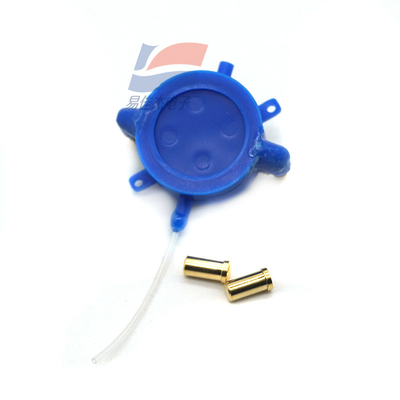

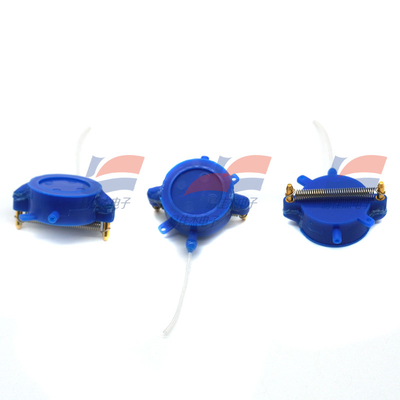

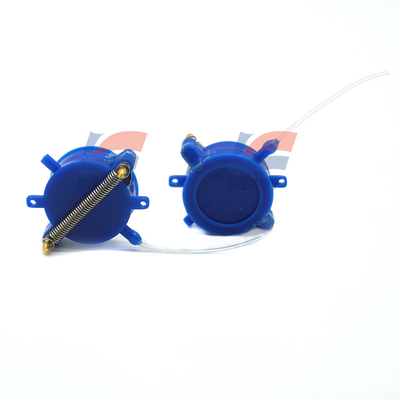

ME2-C2H5OH-Ф16 Alcohol Gas Sensors Electrochemical High precision
ME2-C2H5OH-Ф16 electrochemical sensor detects gas concentration by measuring current based on electrochemical principles. It uses the process of electrochemical oxidation of the target gas on the working electrode in the electrolytic cell. The current generated by the target gas in the electrochemical reaction is proportional to its concentration. Following Faraday's law, the gas concentration is obtained by measuring the current.
Application
Widely used in public transportation, environmental alcohol detection.
Features
Low consumption
High precision
High sensitivity
Wide linear range
Strong anti-interference ability
Excellent repeatability and stability
| Detection gas | C2H5OH alcohol |
| Measurement range | (0～1.0) mg/L |
| Maximum detection concentration | 2.0 mg/L |
| Sensitivity | (6±2) μA/(mg/L) |
| Response time (T90) | ≤20 seconds |
| Load resistance (recommended) | 10Ω |
| Repeatability | ±0.006 mg/L |
| Stability (/month) | ＜2% |
