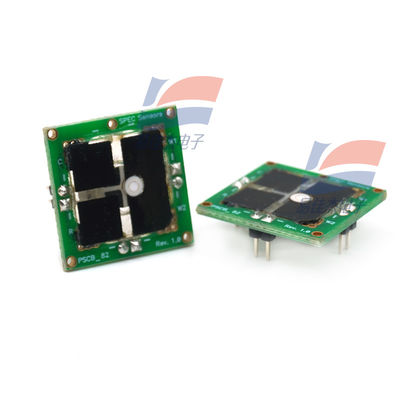

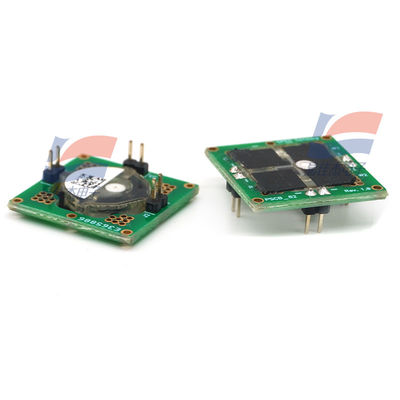

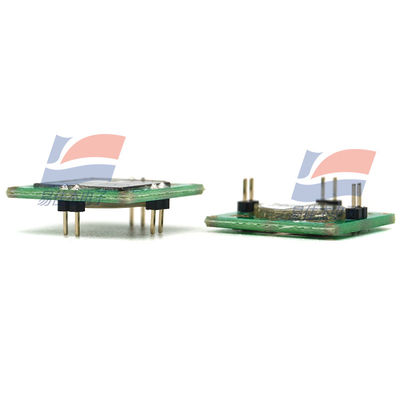

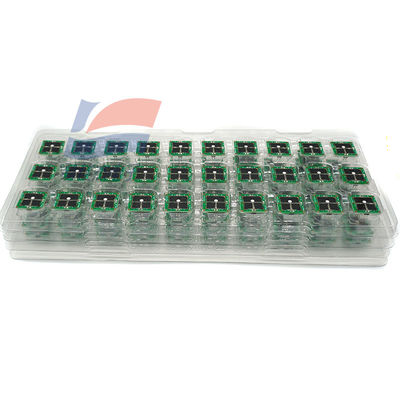

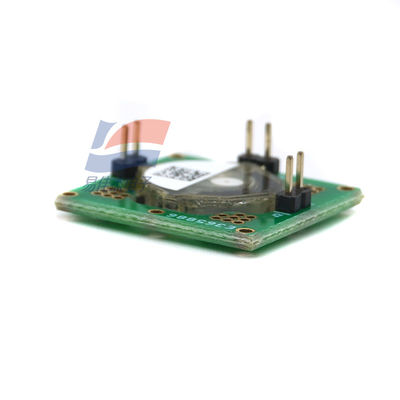

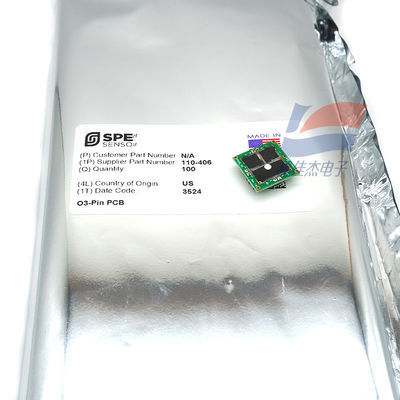

110-406 3SP-O3 Ozone Gas Sensor Electrochemical Sensitivity for Non Condensing Environments

Large Image : 110-406 3SP-O3 Ozone Gas Sensor Electrochemical Sensitivity for Non Condensing Environments

Product Details:

Place of Origin:	UK
Brand Name:	SPEC
Model Number:	3SP-O3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

110-406 3SP-O3 Ozone Gas Sensor Electrochemical Sensitivity for Non Condensing Environments

Description

Lower Detection Limit:	< 20 Ppb (instrumentation Dependent)	Measurement Range:	0 To >20 Ppm
Power Consumption:	10 To 50 UW (circuit & Ambient O3 Dependent)	Sensitivity NA/ppm @ 5ppm:	-60 +/- 10 NA/ppm
Resolution:	< 20 Ppb (instrumentation Dependent)	Operating Temperature Range:	-30 To 50 C (-20 To 40 C Continuous)
Expected Operating Life:	> 5 Years (10 Years @ 23+/-3C; 40+/-10% RH)	Operating Humidity Range:	Non-condensing 0 To 100% RH (15 To 95% Continuous)
Highlight:	Non Condensing Environments Ozone Sensor , 3SP-O3 Ozone Sensor

110-406 3SP-O3 Ozone Gas Sensor Electrochemical Sensitivity for Non Condensing Environments

BENEFITS
• Small Size with Low Profile (20x20x3 mm)
• Long Life (10 years expected life)
• Fast Response (< 15 seconds)
• Low Power Consumption
• Individually Calibrated (NIST Traceable)
• ROHS Compliant
• Improved stability and ppb performance

APPLICATIONS
• Air Quality Monitoring*
• Industrial Safety
• Air Purification Control

Measurement Range	0 to >20 ppm
Lower Detection Limit	< 20 ppb (instrumentation dependent)
Resolution	< 20 ppb (instrumentation dependent)
Response Time	< 15 seconds typical
Sensitivity nA/ppm @	5ppm -60 +/- 10 nA/ppm

110-406 3SP-O3 Ozone Gas Sensor Electrochemical Sensitivity for Non Condensing Environments 0
