Product Details:
|
| Inboard Filter: | To Remove Effect From H2S And HCl | Resolution (Electronics Dependent): | < 0.5 Ppm |
|---|---|---|---|
| Typical Baseline Range (pure Air, 20°C): | -2 Ppm To 2 Ppm | Maximum Overload: | 4000 Ppm |
| T90 Response Time: | < 25 S | Nominal Range: | 0 - 2000 Ppm |
| Output Signal: | 100 ± 20 NA/ppm | Operation Principle: | 3-Electrode Electrochemical |
| Highlight: | T90 Response Time Gas Sensor,0 - 2000ppm Gas Sensor,Inboard Filter Gas Sensor |
||

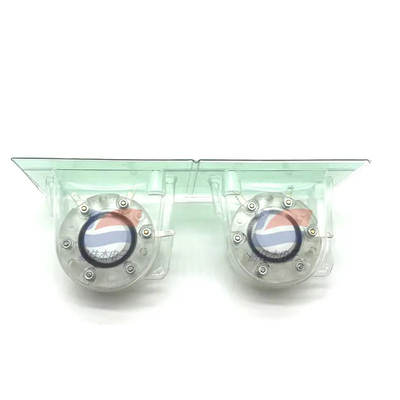

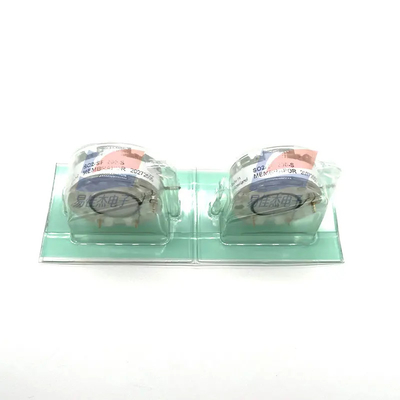

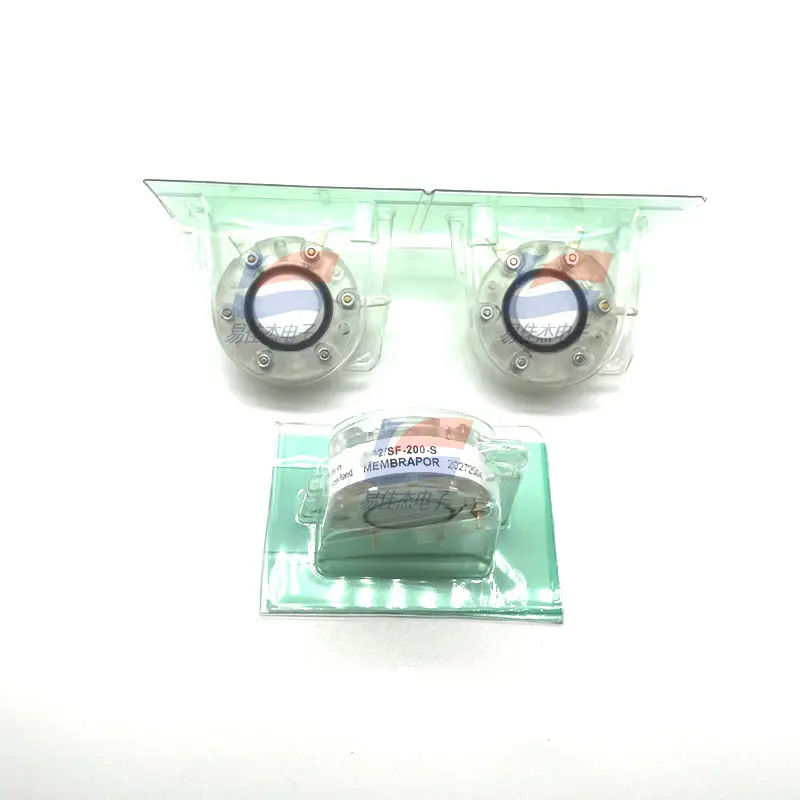

SO2/SF-200-S Sulfur Dioxide Gas Sensor 3 Electrode Electrochemical
Applications
• Stack/ Flue Gas Monitoring
• Emission Monitoring
Electrical
| Rec. Load Resistor | 10 - 33 Ω |
| Bias (V_Sens-V_Ref) | Not recommended |
| Conformity to | RoHS directive RoHS Compliance |
| Relative Humidity Range | 15 % to 90 % RH non-condensing |
| Temperature Range | -20 °C to 50 °C |
| Pressure Range Atmospheric | ± 10% |
| Pressure Coefficient | N.D. |
| Humidity Effect | None |
Lifetime
| Expected Operation Life | 2 years in air |
| Expected Long Term Output Drift in air | < 2 % signal loss per month |
| Filter Life | N.D. |
| Storage Life | 6 months in container |
| Rec. Storage Temperature | 5°C - 20°C |
| Warranty Period | 12 months from date of dispatch |
