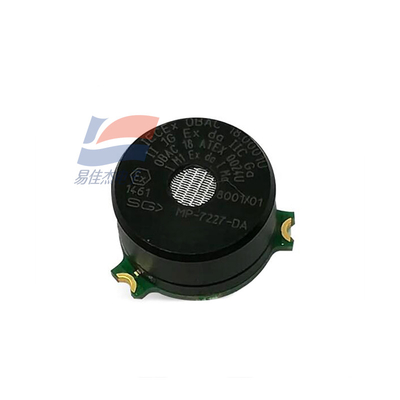

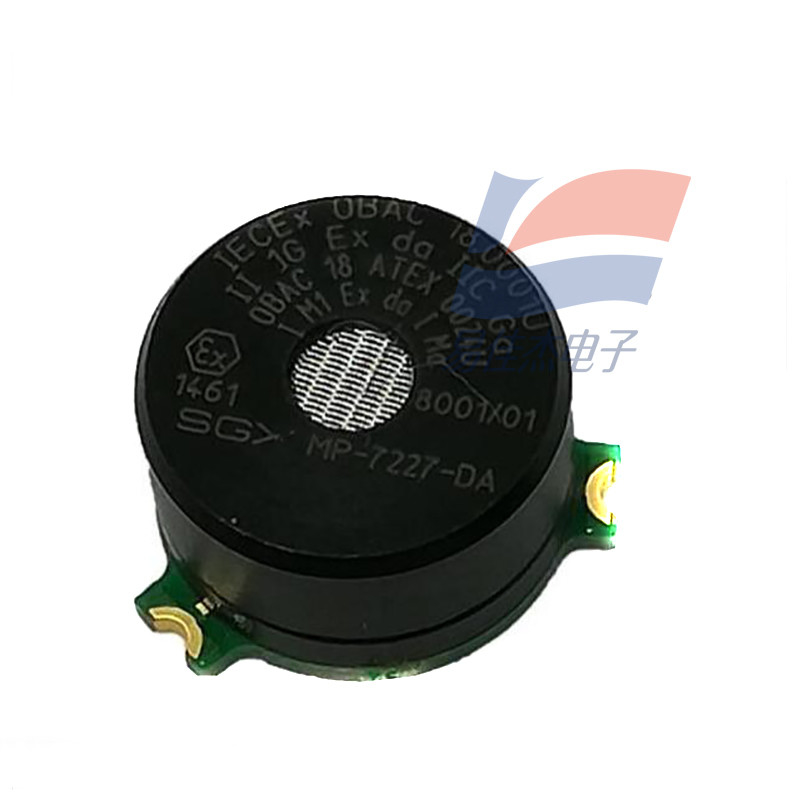

MP7277-DA Air Quality Gas Sensors Detects Most Flammable Vapours and Gases

Large Image : MP7277-DA Air Quality Gas Sensors Detects Most Flammable Vapours and Gases

Product Details:

Place of Origin:	UK
Brand Name:	SGX Sensortech
Model Number:	MP7277-DA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

MP7277-DA Air Quality Gas Sensors Detects Most Flammable Vapours and Gases

Description

Typical Power:	37.0 To 41.0 MA	Operational Pressure Range:	70 To 130 KPa
Body Material:	PEI	Operation / Storage:	−40 To +60 °C
Gases Detected:	Most Flammable Gases And Vapours	Weight:	1g
Humidity Range For Operation And Storage:	0 To 95% (non-condensing)	DC Supply To Detectors:	+2.9 To +3.1V
Highlight:	MP7277-DA Gas Sensor , 70-130KPa PEI Gas Sensor , Flammable Vapours Gas Sensor

MP7277-DA Air Quality Gas Sensors Detects Most Flammable Vapours and Gases

The MP7227-DA pellistor is a low power, hazardous area safe,extremely robust and poison-resistant device in a certified flameproof enclosure. The MP7227-DA type sensor is designed for low power operation in continuous mode providing additionally ultra-low power consumption when used in pulse mode operation, which makes this sensor a preferred choice for battery operated devices.

The MP7227-DA has been designed to provide the basic sensor performance that will enable a suitable instrument to meet the various (Group 1) mining and industrial (Group 2) performance standards.

Specification:

Sensor Type	Flammable Gas
Maximum Operating Temperature	+ 60℃
Minimum Operating Temperature	- 40℃
Operating Supply Voltage	2.9 V to 3.1 V
Package / Case	14.4 mm x 6.7 mm
Product Type	Air Quality Sensors
Supply Voltage - Max	3.1 V
Supply Voltage - Min	2.9 V

MP7277-DA Air Quality Gas Sensors Detects Most Flammable Vapours and Gases 0
