S10917-35GT Si Photodiode Array RGB Color Sensor integrated In Small And Thin Package

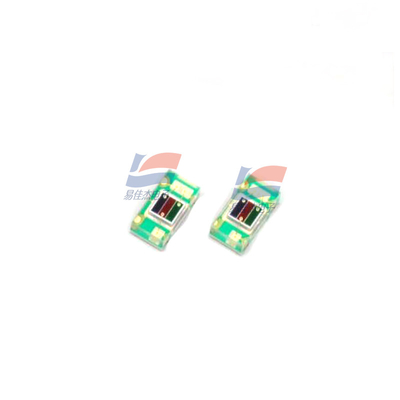

Large Image : S10917-35GT Si Photodiode Array RGB Color Sensor integrated In Small And Thin Package

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S10917-35GT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S10917-35GT Si Photodiode Array RGB Color Sensor integrated In Small And Thin Package

Description

Spectral Response Range (Blue):	390 To 530 Nm	Rise Time:	0.1 Microseconds
Terminal Capacitance:	12 PF	Product Type:	RGB Photodiode
Dark Current (Max):	0.05 Nanoamperes	Packaging Material:	Plastic
Package Size:	3.0 × 1.6 × 1.0 Mm	Photosensitivity (Blue):	0.2 Air/Watt
Highlight:	0.1 Microseconds Rise Time Photodiode , S10917-35GT Photodiode , Ultrafast RGB Photodiode

S10917-35GT Si Photodiode Array RGB Color Sensor integrated In Small And Thin Package

Features
- Infrared-cut filter formed on active area
- Superior cost performance
- Small, thin package: 3.0 × 1.6 × 1.0t mm
- 3-channel (RGB) Si photodiode
- Photosensitive area: 1 × 1 mm/3-segment (RGB)
- RoHS-compatible
- Surface mount type

Specification

Product type	RGB photodiode
Package material	Plastic
Package type	COB type
Package size	3.0 × 1.6 × 1.0 mm
Photosensitive area	1 × 1 mm
Spectral response range (Blue)	390 to 530 nm
Spectral response range (Green)	470 to 600 nm
Spectral response range (Red)	590 to 680 nm
Peak sensitivity wavelength (Blue)	460 nm
Peak sensitivity wavelength (Green)	540 nm
Peak sensitivity wavelength (Red)	620 nm
Photosensitivity (Blue)	0.2 A/W
Photosensitivity (Green)	0.23 A/W
Photosensitivity (Red)	0.17 A/W
Dark current (max.)	0.05 nA
Terminal capacitance	12 pF
Rise time	0.1 μs
Operating temperature	-25 to +85 deg.C
Storage temperature	-40 to +85 deg.C

S10917-35GT Si Photodiode Array RGB Color Sensor integrated In Small And Thin Package 0
