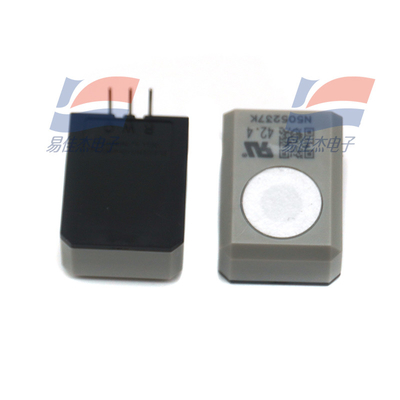

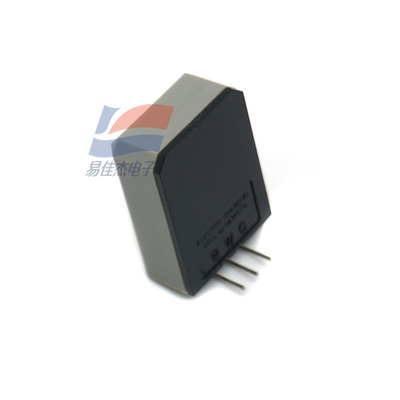

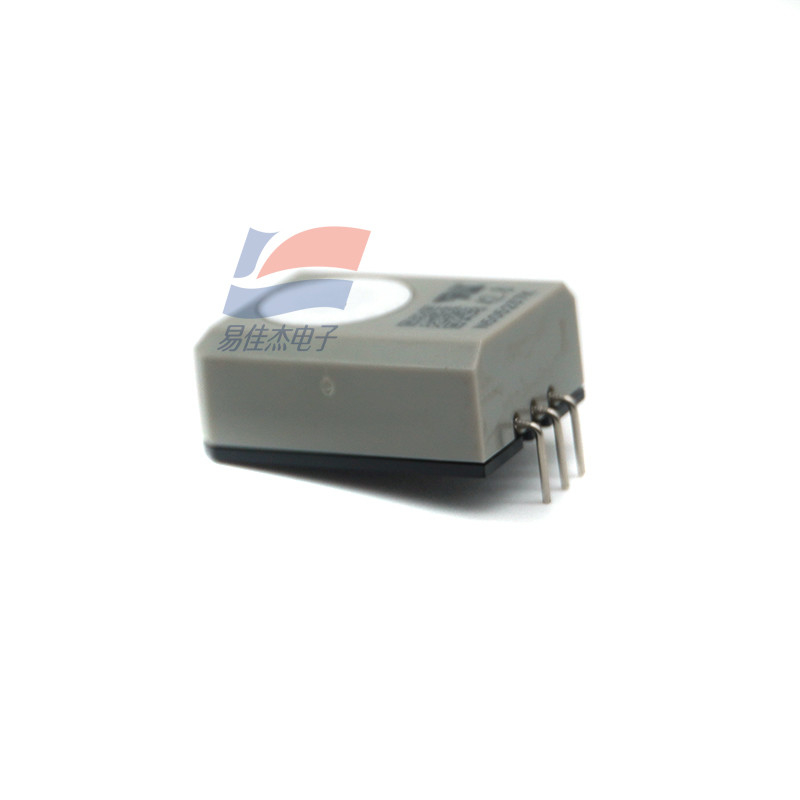

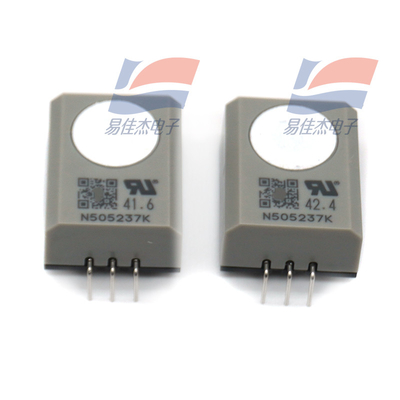

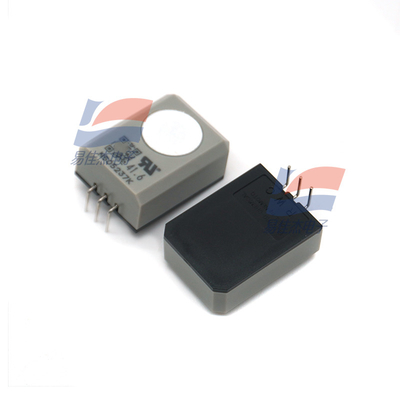

NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design

NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design
NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design
NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design

Large Image :  NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design

Product Details:
Place of Origin: Japan
Brand Name: NEMOTO
Model Number: NAP-505R
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PCS/Month
Contact Now

NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design

Description
Service Life: Usually 5 Years Reproducibility: Less Than 2%
Output Current: 40 10na/ppm Co Detection Gas Concentration Range: CO 0-1000ppm
Drift: Less Than 5%/ Year Reaction Time T90: Less Than 30 Seconds
Zero Drift: Less Than 10ppm(-20℃~50℃) Ambient Temperature And Humidity: -20~50℃, 15-90%RH
Highlight:

Accurate Gas Sensor

,

NAP-505R Gas Sensor

,

2% Reproducibility Gas Sensor

NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design



The NAP-505 Gas Sensor is a low–cost 3-electrode electrochemical gas sensor designed for the detection and measurement of carbon monoxide in the range 0-1000ppm, in domestic carbon monoxide detectors, fire detectors, air quality monitors and commercial gas detection applications such as Underground Car Parks.



*3-Electrode design for greater stability

*Compact, leak-proof enclosure

*Resistant to shocks and vibration

*Terminals may be soldered

*Highly specific to target gas

*Unaffected by humidity

*Low Power consumption

*Very Low Long term drift



Specification:

Detectable Gas  Carbon Monoxide
Detection range  0 – 1000 ppm
Maximum overload  2000 ppm
Output current  40 +/- 10 nAppm



NAP-505R Low Cost Carbon Monoxide Gas Sensor 3 Electrode Design 0
