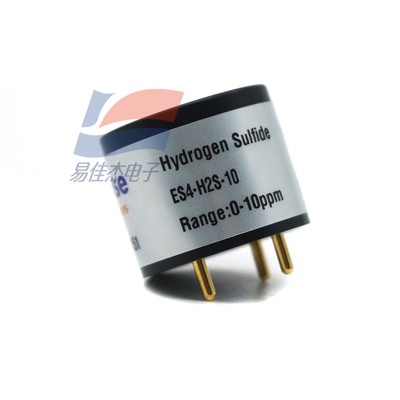

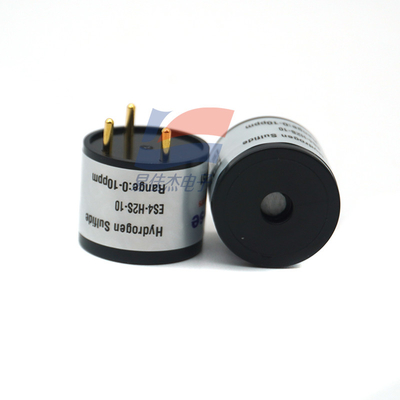

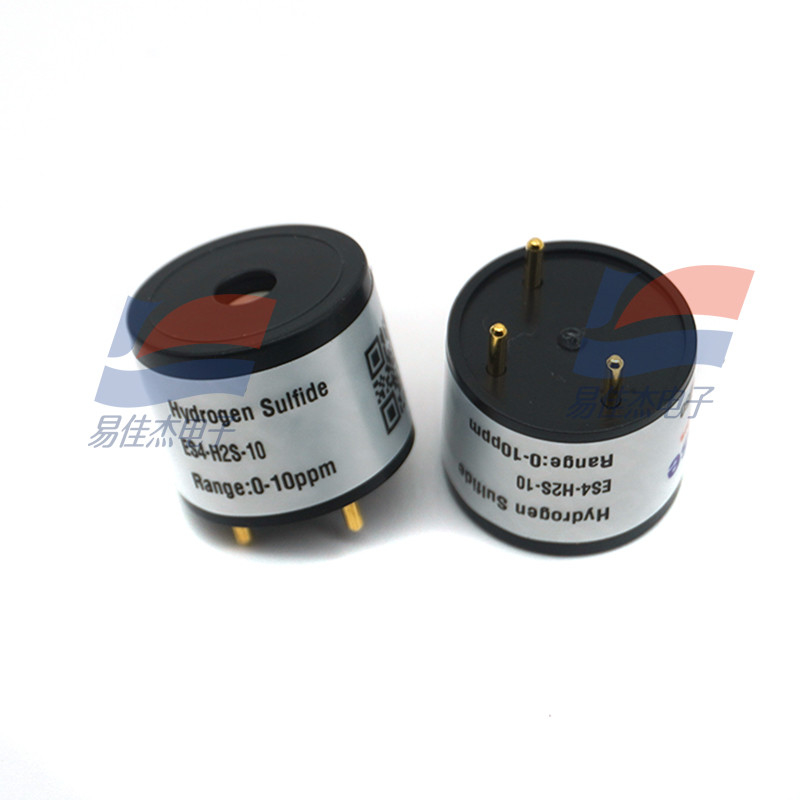

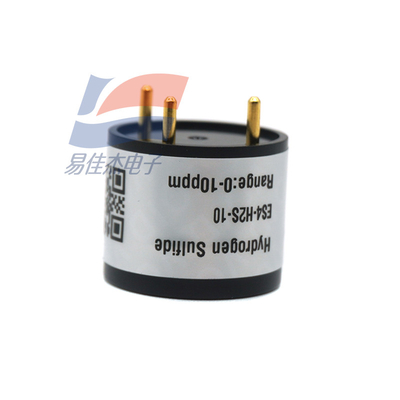

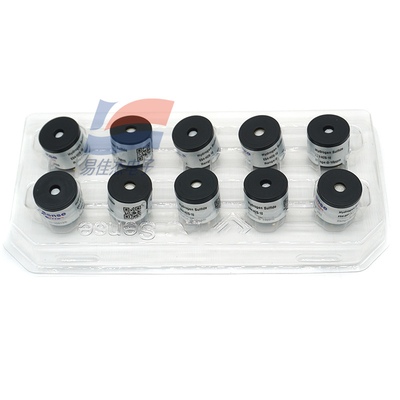

ES4-H2S-10 Gas Sensor Hydrogen Sulfide Fast Response Detection Polymer Electrochemistry

Large Image : ES4-H2S-10 Gas Sensor Hydrogen Sulfide Fast Response Detection Polymer Electrochemistry

Product Details:

Place of Origin:	Germany
Brand Name:	EC
Model Number:	ES4-H2S-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Month

Contact Now

ES4-H2S-10 Gas Sensor Hydrogen Sulfide Fast Response Detection Polymer Electrochemistry

Description

Measuring Range:	0 – 10 Ppm	Maximum Overload:	50 Ppm
Dimensions:	Ø20 X 16.6 Mm (without Pins)	Resolution:	0.01 Ppm
Weight:	< 6 G	Response Time:	T50 < 10 Sec / T90 < 30 Sec
Highlight:	H2S Detection Gas Sensor , T90 30 Sec Gas Sensor , ES4-H2S-10 Gas Sensor

ES4-H2S-10 Gas Sensor Hydrogen Sulfide Fast Response Detection Polymer Electrochemistry

What is the H2S Gas Sensor and how does it work?
The EC Sense ES4-H2S-10 Hydrogen Sulfide Gas Sensor is a cutting-edge solid polymer electrochemical gas sensor, known for its extended lifespan and durability. Notably, it operates without any power consumption and boasts a compact design. This ES4-H2S-10 Gas Sensor is specifically engineered to detect Hydrogen Sulfide gases, which are crucial to detect in various applications. When paired with the EC Sense Smart Digital Board, it simplifies integration, eliminating the need for labor-intensive sensor calibration.

Specification:

Measurement Range	0 – 10 ppm
Resolution	0.01 ppm
Maximum Overload	50 ppm
Sensitivity	160 nAppm ± 40 nAppm
Response Time	T50 < 10 sec. / T90 < 30 sec.
Weight	< 6 g
Dimensions (sensor)	Ø20 x 16.6 mm (without pins)

ES4-H2S-10 Gas Sensor Hydrogen Sulfide Fast Response Detection Polymer Electrochemistry 0
