Product Details:
|
| Sensitivity: | 22±8 MV/%CH4 | Detection Gas: | Most Combustible Gases And Vapors |
|---|---|---|---|
| Long-term Stability: | <±5% Signal Value/month | Product Model: | CLL-6112-300 |
| Baseline Drift: | <±5%LEL Methane/month | Range: | 0-100%LEL |
| Response Time (T90): | < 20 Seconds (methane) | Linearity: | 0-75%LEL |
| Highlight: | 3LEL 2.3V CLL-6112-300,Gas Sensor for Combustible Gases,Precise Detection Gas Sensor |
||

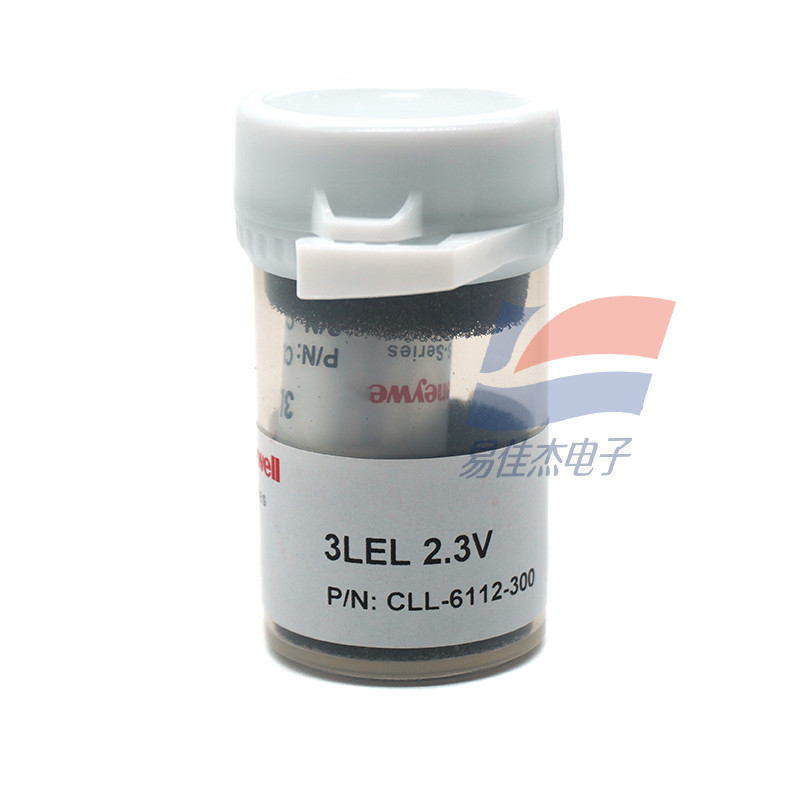

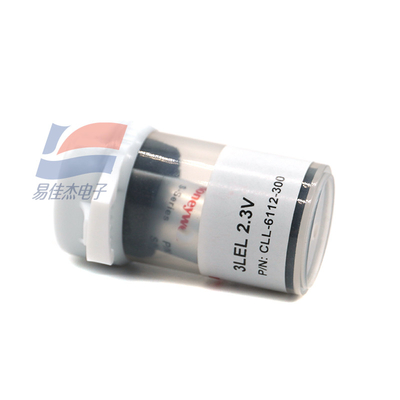

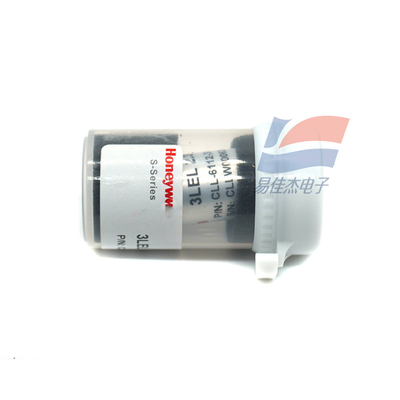

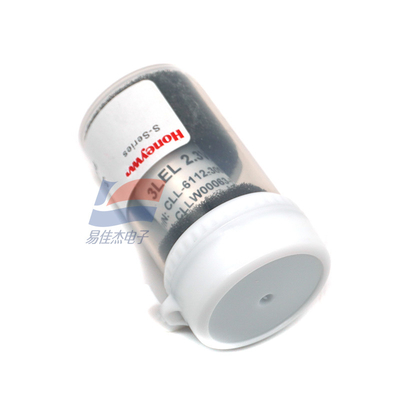

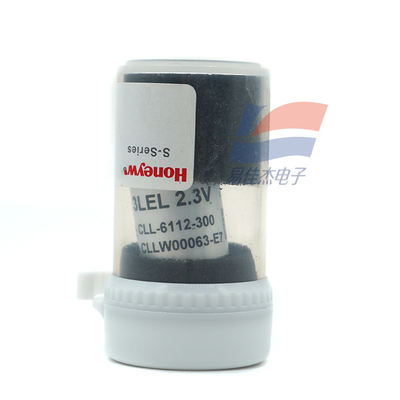

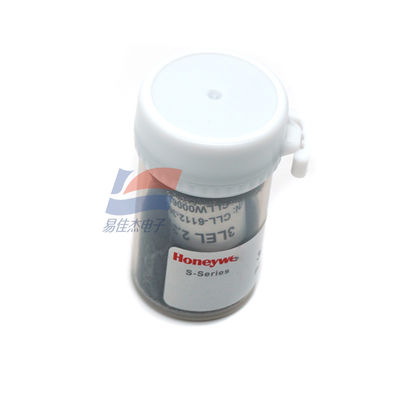

3R 2.3V LEL CLL-6112-300 LEL Combustible Gas Sensor New
Performance Characteristics
| Part number | CLL-6112-300 |
| Gas Detected | Most combustible gases and vapors |
| Nominal Range | 0-100%LEL |
| Sensitivity Range | 22±8 mV/%CH4 |
| T90 Response Time | < 20 seconds (methane) |
| Linear to | 0-75%LEL |
Operation Conditions
| Temperature Range | -20℃ to 50℃ |
| Operating Humidity | 15-90%RH non-condensing |
| Operating Voltage | 2.3V D.C. |
| Operating Current | 110±10 mA |
| Storage | no Si,Pb, Sn and S etc.vapors allowed |
