4NO2-CT Nitrogen Dioxide Sensor Electrochemical Three Electrodes

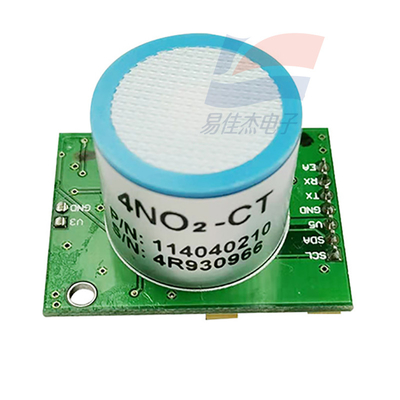

Large Image : 4NO2-CT Nitrogen Dioxide Sensor Electrochemical Three Electrodes

Product Details:

Place of Origin:	USA
Brand Name:	SUSA
Model Number:	4NO2-CT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000PCS/Months

Contact Now

4NO2-CT Nitrogen Dioxide Sensor Electrochemical Three Electrodes

Description

Dimensions:	32mm (diameter) × 18.9mm (height)	Warm-up Time:	<1 Minute
Measurement Range:	0~10ppm, 0~1ppm	Expected Service Life:	More Than 3 Years
Power Consumption:	<25 MW	Detection Gas:	Nitrogen Dioxide Gas In The Air
Working Temperature:	-10～50℃	Working Humidity:	5～95%RH, Non-condensing
Highlight:	NO2 gas detector module , Environmental Monitoring Gas Detection Module , Ultra Fast Gas Detection Module

4NO2-CT Nitrogen Dioxide Sensor Electrochemical Three Electrodes

The code "4NO2-CT" likely refers to a 4NO2-CT Nitrogen Dioxide Electrochemical Sensor. This type of sensor is designed to detect nitrogen dioxide (NO2) gas within a specific range, typically 0-20ppm. These sensors are often used in environmental monitoring, industrial safety, and other applications where NO2 detection is crucial.

Specification:

Operating Principle	Electrochemical three-electrode
Detection Range	0-20 ppm
Maximum Load	200 ppm
Base Current	< ±0.4 μA
Zero Drift (-20 to 50°C)	0-1 ppm
Sensitivity	600 ± 150 nA/ppm (negative signal)
Response Time	< 30 seconds
Repeatability	< ±2% of signal value/month

4NO2-CT Nitrogen Dioxide Sensor Electrochemical Three Electrodes 0
