TB420 Smart Gas Sensor Module Two Wire For Gas Safety Monitoring

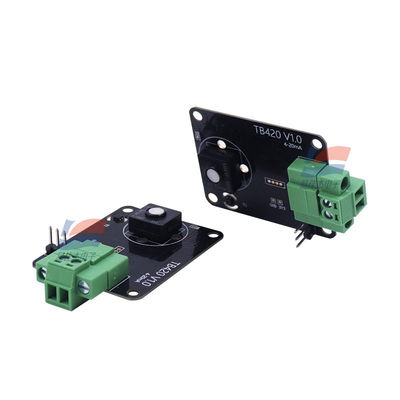

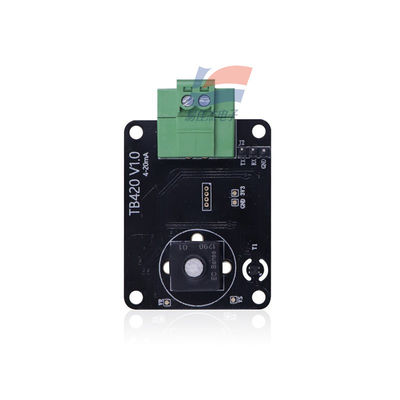

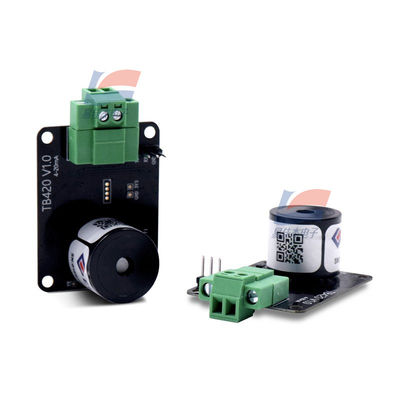

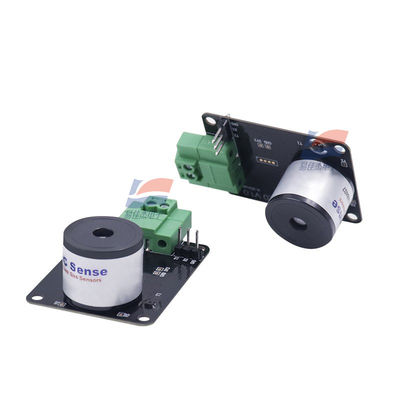

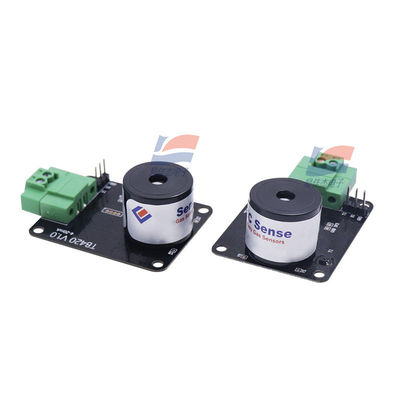

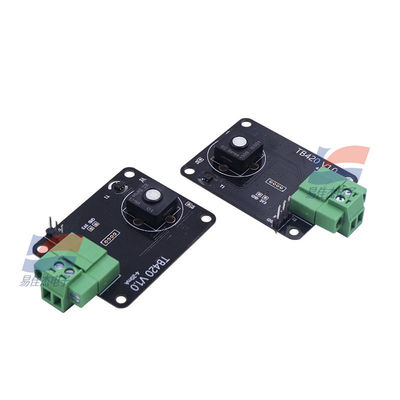

Large Image : TB420 Smart Gas Sensor Module Two Wire For Gas Safety Monitoring

Product Details:

Place of Origin:	Germany
Brand Name:	EC
Model Number:	TB420

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

TB420 Smart Gas Sensor Module Two Wire For Gas Safety Monitoring

Description

Accuracy:	± 5% Full Scale	Power Consumption:	< 0.6W
Output:	4-20mA Two-wire	Working Voltage:	9 – 24V DC (24V DC Recommended)
Weight (with Sensor):	< 11.0 G	Dimensions (with Sensor):	45 X 35 X 21.7 Mm
Highlight:	Smart Gas Sensor Module , Two Wire Smart Gas Sensor Module

TB420 Smart Gas Sensor Module Two Wire For Gas Safety Monitoring

The TB420 Gas Sensor Module is an intelligent two wire 4-20mA digital gas sensor module, which utilizes a smart microprocess with a liquid electrochemical gas sensing technology and intelligent algorithm calculation. The TB420 Sensor Module is designed to comply with the relevant standards for gas safety monitoring in the industrial application.

Gas Sensor Specifications

Principle	Electrochemical Sensing Technology
Accuracy	± 5 % (Measurement Value)
Repeatability	< 2 %
Long-Term Drift	< 5%/year
Expected Lifetime	> 2 years

Environment Specifications

Operating Temperature	-40 ℃ to +55 ℃
Operating Humidity	15 - 95 % RH. non-condensing
Operating Pressure	Atmospheric pressure ± 10 %
Storage Temperature	0 ℃ to 20 ℃

TB420 Smart Gas Sensor Module Two Wire For Gas Safety Monitoring 0
