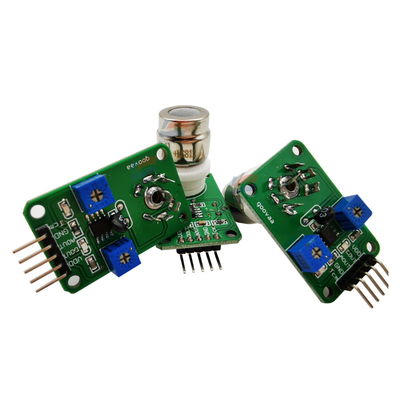

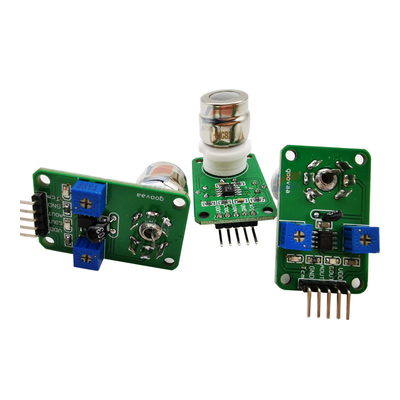

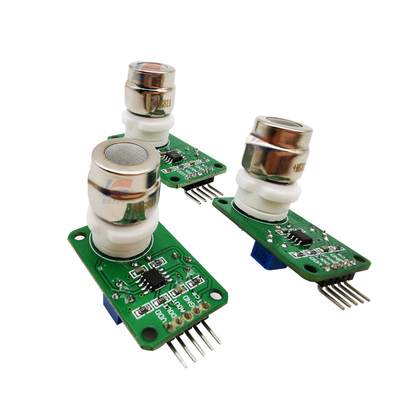

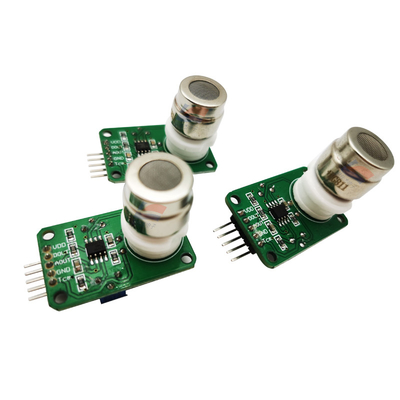

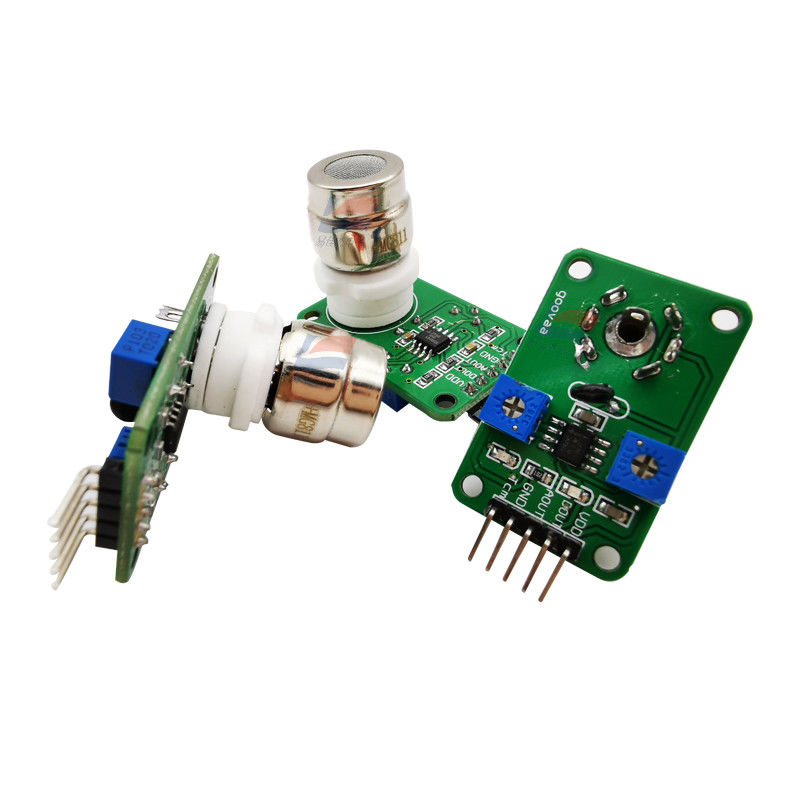

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2

Large Image : MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2

Product Details:

Place of Origin:	China
Brand Name:	MG
Model Number:	MG811

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2

Description

Communication Speed:	100KHz To 3.4MHz	Working Voltage:	DC 6V
Detection:	CO2	Product Type:	MG811 Module
Size:	32mm X22mm X30mm	Analog Output:	0 ~ 2V/0-4V
Highlight:	MG811 Gas Sensor Module , Sensitivity Gas Sensor Module , CO2 Gas Sensor Module

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2

Features
Good sensitivity and selectivity to CO2
Low humidity and temperature dependency
Long stability and reproducibility

Application
Air Quality Control
Ferment Process Control
Room Temperature CO2 concentration Detection

Specification:

Model	MG811
Sensor type	Solid Electrolyte
Target gas	CO2
Detection range	350ppm - 10000ppm
Heater resistance	35Ω ± 3Ω
Heater current	140 ± 20mA
Heater voltage	6.0V ± 0.1V AC or DC
Heater consumption	850mW ± 120mW
Standard working condition	20 ~ 50°C, under 95%RH
Zero point EMF	200mV - 600mV
DEMF output signal	≧ 25mV/1000ppm CO2

MG811 CO2 Gas Sensor Module Sensitivity Good sensitivity and selectivity To CO2 0
