Product Details:
|
| Target Gases: | Methane, Natural Gas | Heater Voltage: | 5.0±0.2V DC |
|---|---|---|---|
| Heater Resistance Approx: | 59Ω At Room Temp. | Sensing Principle: | MOS Type |
| Circuit Voltage: | 5.0±0.2V DC | Load Resistance: | 0.45kΩ Min |
| Standard Package: | TO-5 Metal Can | Typical Detection Range: | 1~25% LEL |
| Highlight: | 5.0V DC Natural Gas Sensor,5.0V DC Methane Sensor |
||
Product Description:

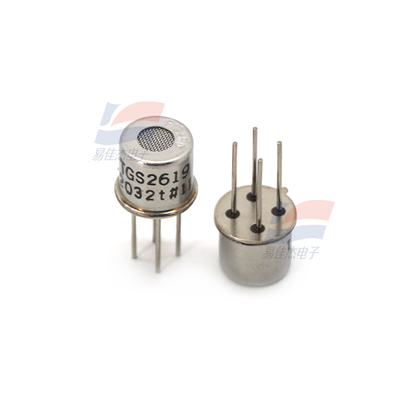

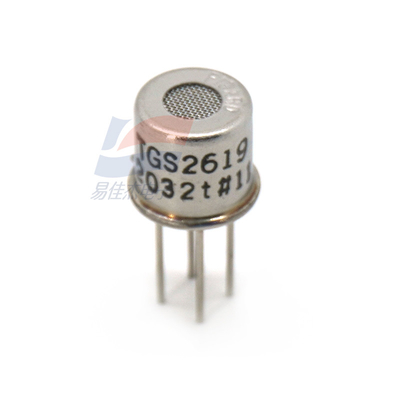

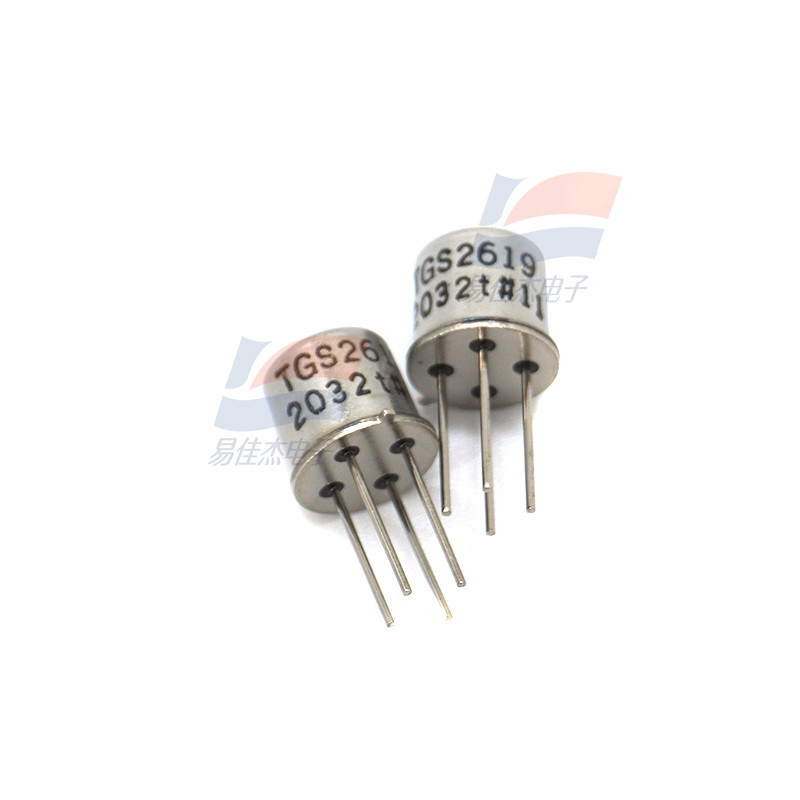

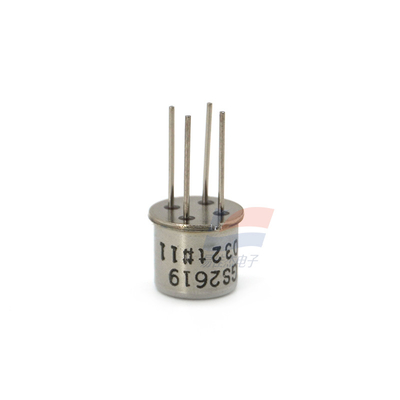

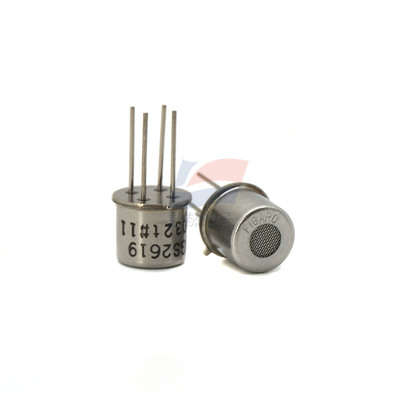

TGS2619-C00 Methane Natural Gas Sensor Low Power Consumption 5.0V DC
Features:
Low power consumption
High sensitivity to methane gas
Long service life and low cost
Simple application circuit
Applications
Household gas leak alarm
Portable gas detector
Leak detection of gas facilities
TGS2619 has high sensitivity to methane gas. Since it has low sensitivity to volatile alcohol (a common interfering gas in residential environments), it is an ideal sensor for household gas leak alarms. Since the sensitive element is small, the heater current of TGS2619 only needs 56mA, and the sensor's detection part is housed in a standard T0-5 metal package. TGS2619-C00 is not only small in size, but also has excellent responsiveness. It is an ideal choice for gas leak detectors. TGS2619-E00 is equipped with a filter cover that can eliminate the influence of interfering gases such as alcohol, and has a highly selective sensitivity to methane gas. It is especially suitable for instruments for detecting household environments with complex atmospheres and strict requirements. It is an ideal sensor for household gas leak detectors.
| Detection principle | Oxide semiconductor type |
| Standard package | TO-5 Metal |
| Target gas Methane | Natural gas |
| Detection range | 500~10000PPM |
