S1227-33BQ Si Photodiode Sensor For UV to Visible Precision Photometry

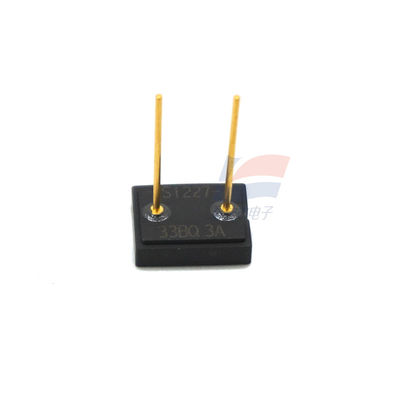

Large Image : S1227-33BQ Si Photodiode Sensor For UV to Visible Precision Photometry

Product Details:

Place of Origin:	Japan
Brand Name:	Hamamatsu
Model Number:	S1227-33BQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

S1227-33BQ Si Photodiode Sensor For UV to Visible Precision Photometry

Description

Packaging:	Ceramic	Cooling:	Uncooled
Spectral Response Range:	190 To 1000 Nm	Terminal Capacitance (typical):	160 PF
Rise Time (typical):	0.5 μs	Photosensitive Area:	2.4 × 2.4 Mm
Number Of Elements:	1	Dark Current (max):	5 Pa
Highlight:	Ultraviolet Photodiode Sensor , Uncooled Architecture Photodiode Sensor

S1227-33BQ Si Photodiode Sensor For UV to Visible Precision Photometry

Features
*High uV sensitivity (quartz window type): QE75 % (=200 nm)
*Suppressed IR sensitivity
*Low dark current

Applications
*Analytical equipment
*Optical measurement equipment, etc

Specification:

Photosensitive area	2.4 × 2.4 mm
Package	Ceramic
Cooling	Non-cooled
Reverse voltage (max.)	5 V
Spectral response range	190 to 1000 nm
Peak sensitivity wavelength (typ.)	720 nm
Photosensitivity (typ.)	0.36 A/W
Dark current (max.)	5 pA
Rise time (typ.)	0.5 μs
Terminal capacitance (typ.)	160 pF
Noise equivalent power (typ.)	2.5×10-15 W/Hz1/2

S1227-33BQ Si Photodiode Sensor For UV to Visible Precision Photometry 0
