Product Details:
|
| Heating Voltage VH: | 5.0V±0.1V AC Or DC | Detection Gas: | Toluene, Methanal, Benzene, Alcohol, |
|---|---|---|---|
| Load Resistance RL: | Adjustable | Detection Range: | 1~50ppm |
| Standard Encapsulation: | Metal Cap | Sensor Type: | Semiconductor Flat Surfaced Sensor |
| Model: | WSP2110 | Loop Voltage VC: | ≤24V DC |
| Highlight: | WSP2110 Semiconductor Gas Sensor,WSP2110 AC Or DC Gas Sensor,WSP2110 Flat Surfaced Gas Sensor |
||

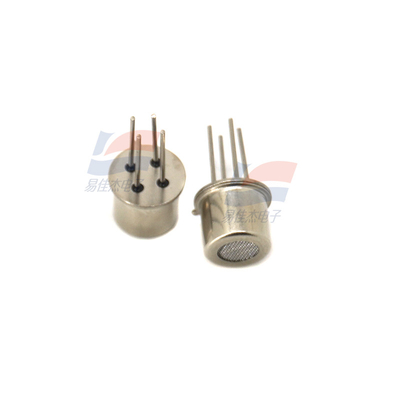

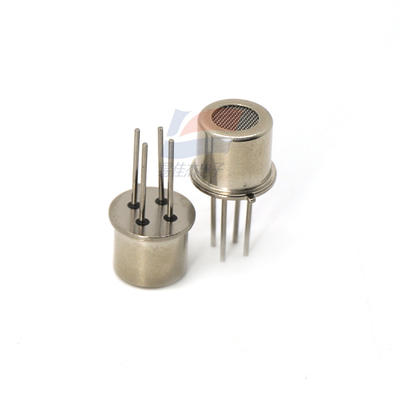

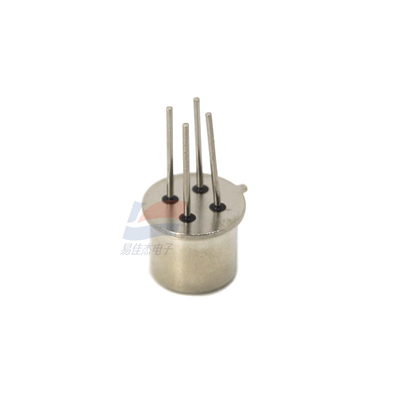

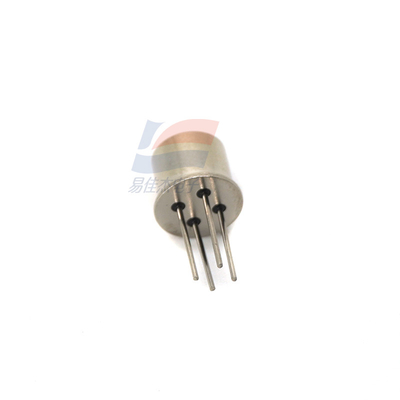

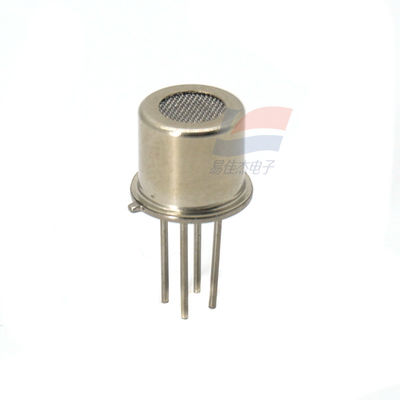

WSP2110 VOC Gas Sensor Semiconductor Planar Suitable For Household Automatic Exhaust Devices
The VOC gas sensor adopts multi-layer thick film manufacturing technology. The heater and metal oxide semiconductor material on the micro Al2O3 ceramic substrate are led out through electrode leads and encapsulated in metal sockets and caps. The conductivity of the sensor is affected by the concentration of the target gas. The higher the concentration, the higher the conductivity of the sensor. Users can convert the change of conductivity into an output signal corresponding to the gas concentration through a simple circuit.
Application:
Suitable for the detection of harmful gases in household automatic exhaust devices, air purifiers, etc.
Datasheet:
| Model | WSP2110 |
| Sensor type | Semiconductor planar sensor |
| Standard package | Metal cover |
| Detection gas | Toluene, formaldehyde, benzene, alcohol, etc. |
| Detection range | 1～50ppm |
