GM4020-CO Carbon Monoxide Gas Sensor High Performance for Gas Analyzers

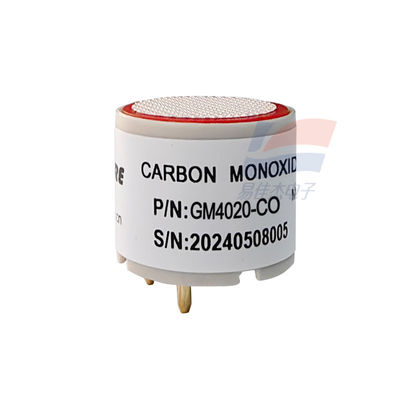

Large Image : GM4020-CO Carbon Monoxide Gas Sensor High Performance for Gas Analyzers

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	GM4020-CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union,
Supply Ability:	1000PCS/Month

Contact Now

GM4020-CO Carbon Monoxide Gas Sensor High Performance for Gas Analyzers

Description

Response Time:	T90 ≤30s	Product Model:	GM4020-CO
Sensitivity:	60±15nAppm	Detection Gas:	Carbon Monoxide Gas CO
Range:	0-1000ppm	Maximum Load Concentration:	2000ppm
Highlight:	Environmental Monitoring Gas Sensor , Fast Response Time Gas Sensor , GM4020-CO Gas Sensor

GM4020-CO Carbon Monoxide Gas Sensor High Performance for Gas Analyzers

The GM4020-CO is a three-electrode electrochemical sensor in the standard "4-series" package, specifically designed for carbon monoxide detection. It outputs a low-level current signal that is linearly proportional to the CO concentration. It serves as a direct replacement for mainstream 4-series CO electrochemical sensors and is widely used in residential and industrial carbon monoxide monitoring equipment.

Specification:

Resolution	1 ppm
Sensitivity	60 ± 15 nA/ppm (at room temperature)
Response Time (T90)	≤ 30 s
Zero Drift (-40 to 50°C)	< 3 ppm
Bias Voltage	0 mV
Operating Temperature	-40°C to +50°C
Operating Humidity	15% to 90% RH (non-condensing)
Operating Pressure	0.1 to 1 atm
Expected Service Life	2 years in air
Long-term Stability	≤ 2% of signal value/month
Storage Temperature	10°C to 30°C; 6-month storage in a clean environment
Weight	16 g
