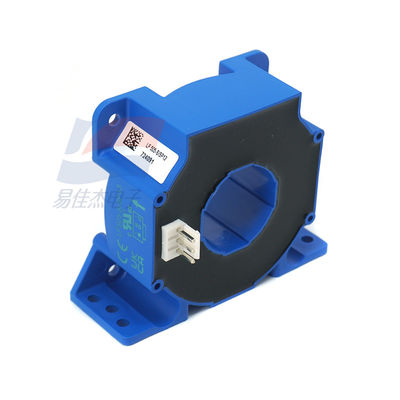

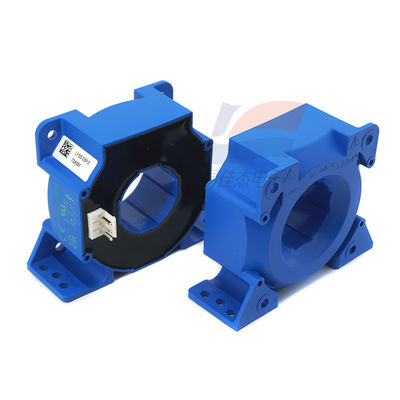

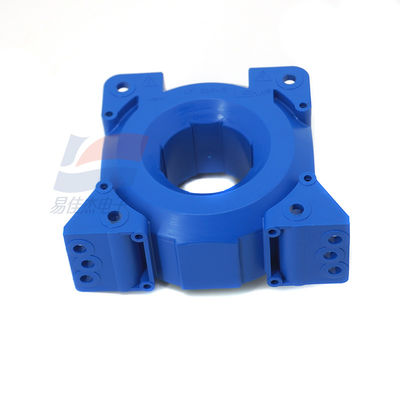

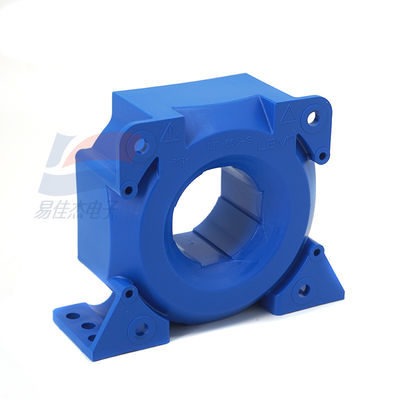

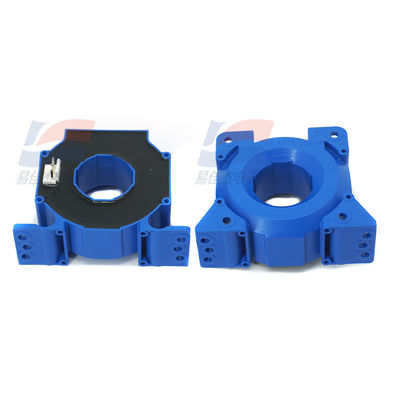

LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC

LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC
LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC

Large Image :  LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC

Product Details:
Place of Origin: USA
Brand Name: LEM
Model Number: LF505-S SP13
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Package
Delivery Time: 3-5workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/Month
Contact Now

LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC

Description
Polarization: Bidirectional Response Time: 1 Microsecond
Voltage: Power Supply ±24V For Measurement: AC/DC
Frequency: DC~100kHz Operating Temperature: -10℃~70℃
Highlight:

±0.6% Board Mount Current Sensors

,

±24V Board Mount Current Sensors

,

LF505-S SP13 Current Sensors

LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC



The LF505-S SP13 is a closed-loop Hall effect current sensor. Although some suppliers label it as being associated with ABB, its core technology originates from LEM Electronics' LF505-S series. SP13 is often a specification suffix used to adapt to specific applications, commonly found in high-current sensing scenarios such as industrial drives and power supply equipment.



Specification:

Rated primary current (RMS) 500A
Primary measurement range 0 - ±800A
Secondary rated current (RMS) 100mA
Turns ratio 1:5000
Supply voltage range ±15 - ±24V (allowable ±5% fluctuation)
Current power consumption (±18V supply) 24mA + secondary current
Measurement accuracy (25℃, at rated current) ±0.6%
Linearity error:  <0.1%
Zero-point current (25℃, no primary current) Typical value: ±0.4mA
Overload magnetic deflection current (after 3 times rated current overload) ±0.2mA
Secondary coil resistance (at 70℃) 70Ω

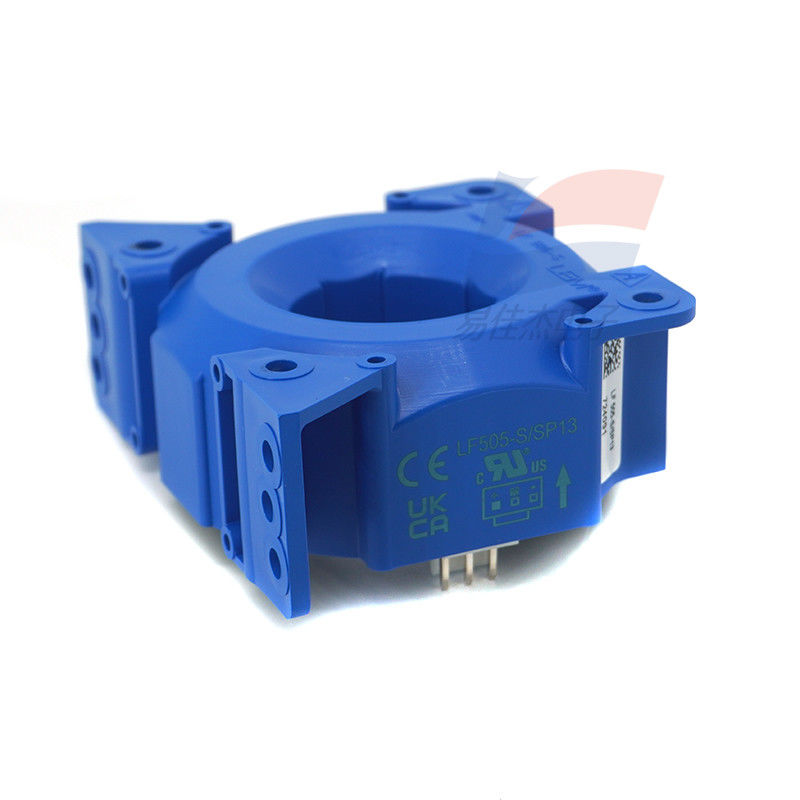

LF505-S SP13 Hall Effect Closed Loop Current Sensor AC And DC 0
