Product Details:
|
| Measuring Range: | 0 ~ 5ppm | Life Expectancy: | 5 Years |
|---|---|---|---|
| Output Signal: | 2000nA/ppm | Resolution: | Better Than 0.02ppm |
| Lower Limit Of Measurement: | 0.03ppm | ||
| Highlight: | 2000nA/ppm Formaldehyde Sensor,0.03ppm Formaldehyde Sensor,Two-Electrode Formaldehyde Sensor |
||
Product Description:

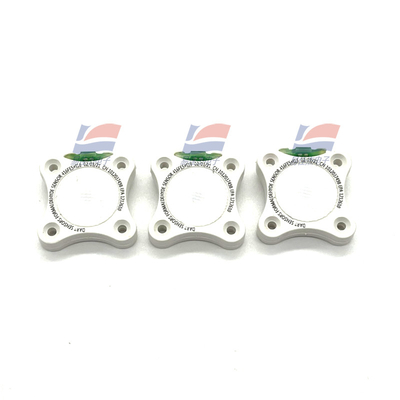

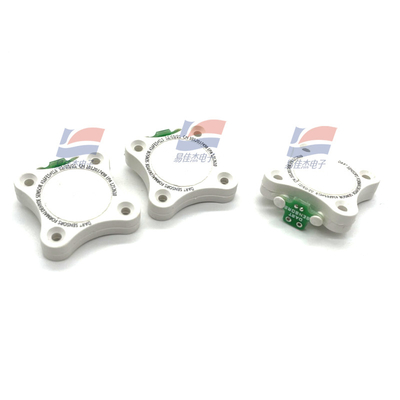

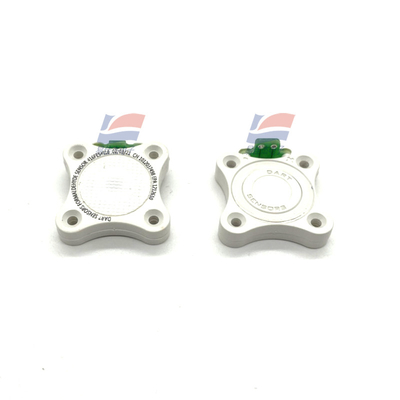

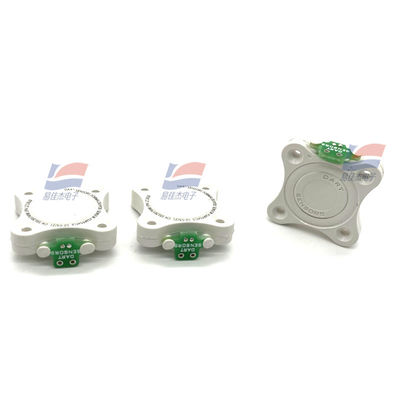

Formaldehyde sensor 2-FE5 two-electrode electrochemical sensor
Features:
Measuring range: 0 ~ 5ppm;
Life expectancy; 5 years;
Output signal: 2000nA/ppm;
Resolution: Better than 0.02ppm
Lower limit of measurement: 0.03ppm
Temperature range: -20℃ ~ 50℃
Pressure range: up to 10 atmospheres;
Humidity range: 15% ~ 90%, no condensation;
Response time t90:50 seconds (at 20℃)
Long-term output drift: < 10% per year
Repeatability: < ±2%
Storage time: 2 years (20℃)
Guarantee period: 2 years
Size: 40x35x9.5 (mm)
Formaldehyde Sensor 2-FE5 Application:
Hand detector
Indoor testing device
Air purifier
Air conditioning equipment
Specifications:
| Temperature range | -20℃ ~ 50℃ |
| Pressure range | up to 10 atmospheres |
| Humidity range | 15% ~ 90%, no condensation; |
| Response time t90 | 50 seconds (at 20℃) |
