Product Details:
|
| Nominal Range: | 0-25%0xygen | Max Overload: | 30% Oxygen |
|---|---|---|---|
| Expected Operating Life: | Two Years In Air | Output Signal: | 0.41 ± 0.07mA In Air |
| T..Response Time: | T..Response Time | ||
| Highlight: | 2FO Electrochemical Oxygen Gas Sensor,0-25% Range Oxygen Gas Sensor |
||

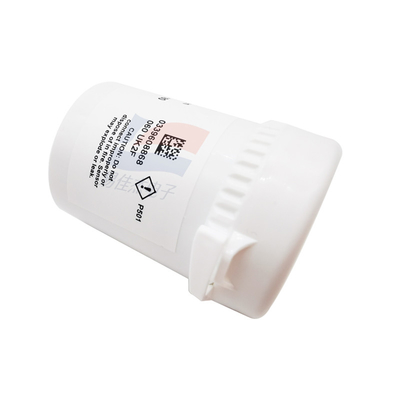

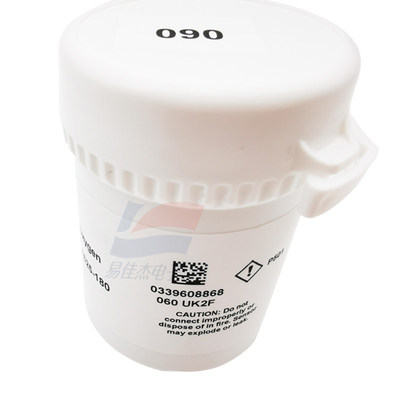

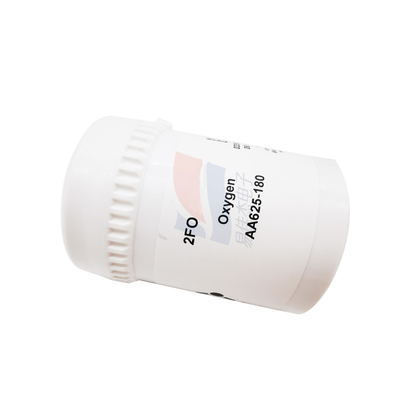

2FO lectrochemical oxygen gas sensor 0-25% range 2 years life
Nominal measuring range: 0-25%
Maximum load: 30%
Service life: 2 years (in the air)
Output signal: 0.41 ± 0.07mA(in air)
T95 Response time lt; 10 seconds (see note)
Temperature range: -20°Cto +45°C
Temperature coefficient: 0.2% signal/°C
Absolute pressure range: atmospheric pressure ± 10%
Humidity range: 0 to 99% RH Intermittent work
Long-term output drift lt; 5% signal loss/year
The recommended load resistance is 100Ω
| Temperature Range | -20°C to +45°C |
| Temperature Coefficient | 0.2% signal/°C |
| Pressure Range | Atmospheric± 10% |
| Pressure Coefficient | <0.02% signal/mBar |
| Operating Humidity | 0 to 99% RH non-condensing |
