Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Measurement Range: | 0-4000 Ppm CO |
|---|---|---|---|
| Maximum Overload: | 20000 Ppm CO | Filter: | To Remove Acid Gases |
| Filter Life: | 560,000 Ppm Hours | Sensitivity*: | 0.030 ± 0.006 μA/ppm |
| Highlight: | Accessories Options Carbon Monoxide CO Gas Sensor,3FF 3F/F CO Gas Sensor,Acid Gas Filtering CO Gas Sensor |
||

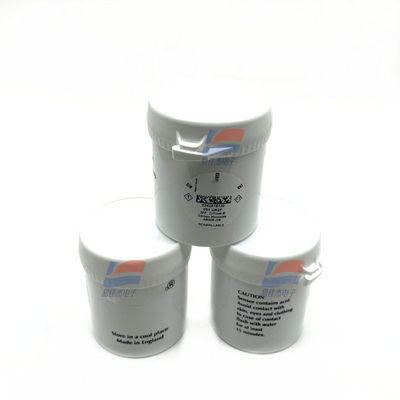

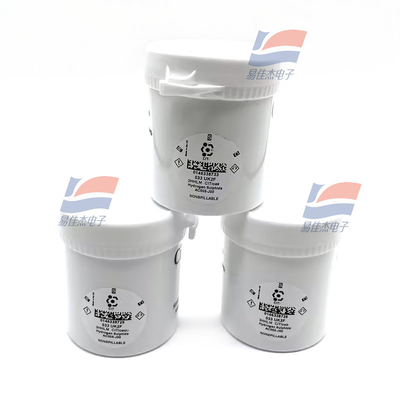

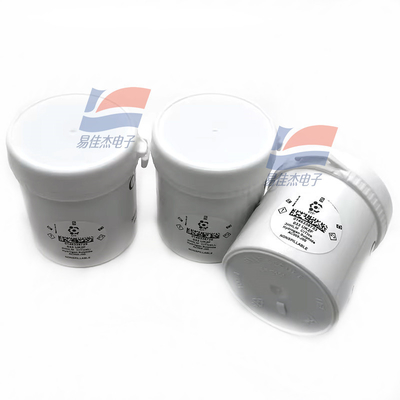

3FF Carbon Monoxide Sensor
purpose of this document is to present the performance specification of the 3FF Carbon Monoxide gas sensor.
This document should be used in conjunction with the Operating Principles (OP08) and the Product Safety Datasheet
(PSDS 16).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor
manufacture.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to
the Operating Principles OP08.
CiTiceLs are designed for operation in a wide range of environments and harsh conditions. However, it is important
that exposure to high concentrations of solvent vapours is avoided, both during storage, fitting into instruments
and operation.
When using sensors with printed circuit boards (PCBs), degreasing agents should be used before the sensor is
fitted. Do not glue directly on or near the CiTiceL as the solvent may cause crazing of the plastic.
| Resolution | 1 ppm CO |
| Response Time (T90)* | <30 seconds |
| Baseline Offset (clean air) | Baseline Offset (clean air) |
| Zero Shift (+20°C to +40°C) | Zero Shift (+20°C to +40°C) |
| Repeatability | 1% of signal |
