Product Details:
|
| Operating Principle: | 3-electrode Electrochemical | Nominal Range: | 0-100 Ppm NO2 |
|---|---|---|---|
| Maximum Overload: | Maximum Overload | Sensitivity*: | 0.37 ± 0.07 μA/ppm |
| Response Time (T90)*: | <35 Seconds | Baseline Offset (clean Air)*: | 0 To 2 Ppm Equivalent |
| Zero Shift (+20°C To +40°C): | -1 Ppm Equivalent | Resolution: | 0.5 Ppm (electronics Dependant) |
| Repeatability: | 2% Of Signal | Output Linearity: | Linear |
| Highlight: | 3ND Nitrogen Dioxide NO2 Gas Sensor |
||

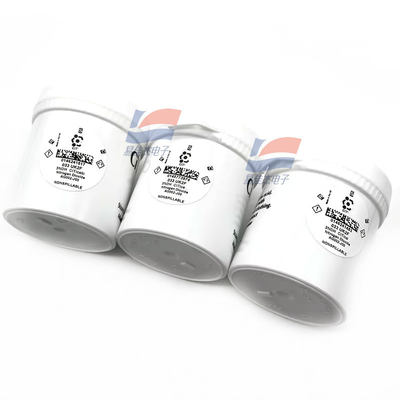

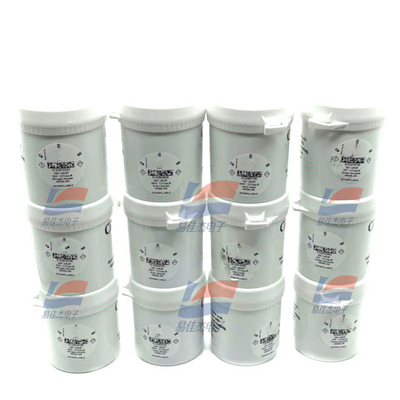

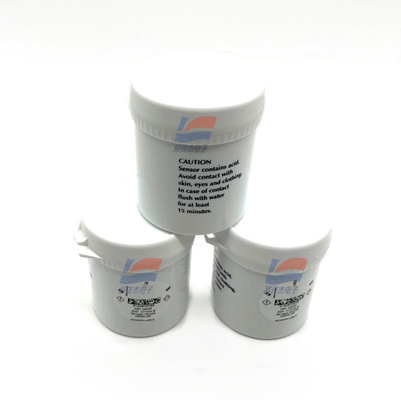

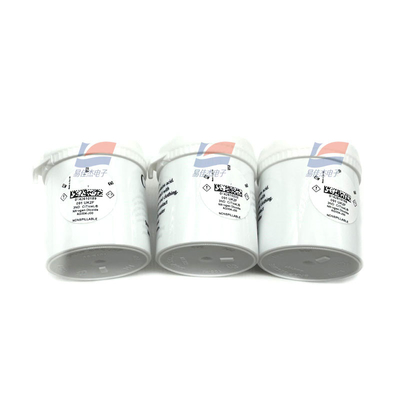

3ND Nitrogen Dioxide (NO2) Gas Sensor Robust, 3-Series packaging Range of accessories available
Doc. Ref.: 3ND.indd ECN I 4849 Issue 4 Page 2 of 3
12th June 2017
Product Data Sheet
Nitrogen Dioxide (NO2) Gas Sensor
Technical Specifications Product Dimensions
All dimensions in mm
All tolerances ±0.15 mm unless otherwise stated
3ND shown with side tags and tin pins
This sensor is designed to be used in safety critical applications. To ensure that the sensor and/or instrument
in which it is used, are operating properly, it is a requirement that the function of the device is confirmed by
exposure to target gas (bump check) before each use of the sensor and/or instrument. Failure to carry out
such tests may jeopardize the safety of people and property.
| Weight | 22 g |
| Operating Temperature Range | -20°C to +50°C |
| Recommended Storage Temp | 0°C to 20°C |
| Operating Pressure Range | Atmospheric ± 10% |
| Pressure Coefficient | 0.037% signal / mbar |
