Product Details:
|
| Nominal Range: | 0-100ppm | Maximum Overload: | 500ppm |
|---|---|---|---|
| Inboard Filter: | To Remove H2S | Expected Operating Life: | Expected Operating Life |
| Output Signal: | 0.37 ± 0.07 µA/ppm | Resolution: | 0.5ppm |
| Temperature Range: | -20° To +50°C | Pressure Range: | Atmospheric ± 10% |
| Pressure Coefficient: | 0.015 % Signal/mBar | T90 Response Time: | £20 Seconds |
| Relative Humidity Range: | 15 To 90% Non-condensing | ||
| Highlight: | 3STF Sulfur Dioxide Sensor,High Resolution Sulfur Dioxide Sensor,Telephony 3 Series Sulfur Dioxide Sensor |
||

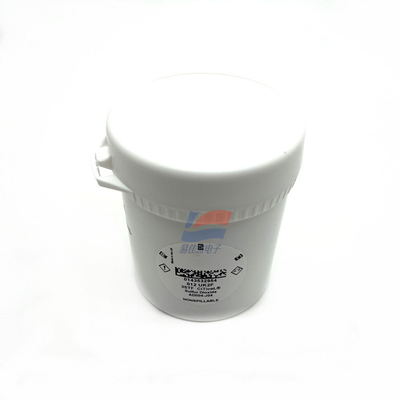

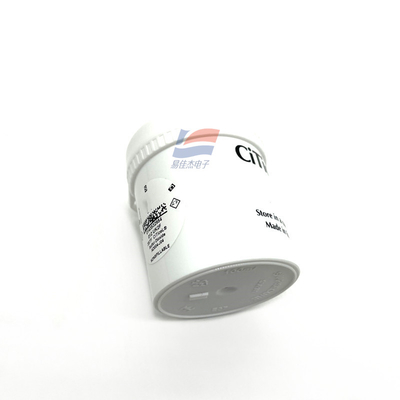

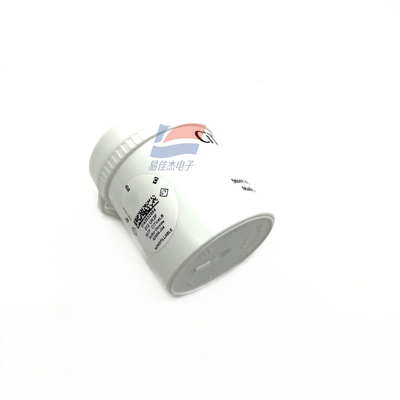

3STF Telephony 3 Series sulfur dioxide sensor
The output of a CiTiceL can vary with
temperature. The graph here shows the variation
in output with temperature for 3ST/F CiTiceLs
based on a sample of about 16 sensors. The
results are shown in the graph as a mean for the
batch, and expressed as a percentage of the
signal at 20°C.
From a statistical viewpoint, for a sample of
this size, the range in values observed for all
sensors of this type will fall within a range three
times the standard deviation above or below the
mean. Assuming therefore this sample is typical,
then the temperature behaviour of all 3ST/F
CiTiceLs will fall in the band +3SD to -3SD.
| Maximum Zero Shift (+20°C to +40°C) | 1ppm equivalent |
| Long Term Output Drift | <2% signal loss/month |
| Bias Voltage | Not required |
| Repeatability | 1% of signal |
| Weight | 22g. |
| Storage Life | Six months in CTL container |
| Recommended Storage Temperature | 0-20°C |
| Warranty Period | 12 months from dtae of despatch |
